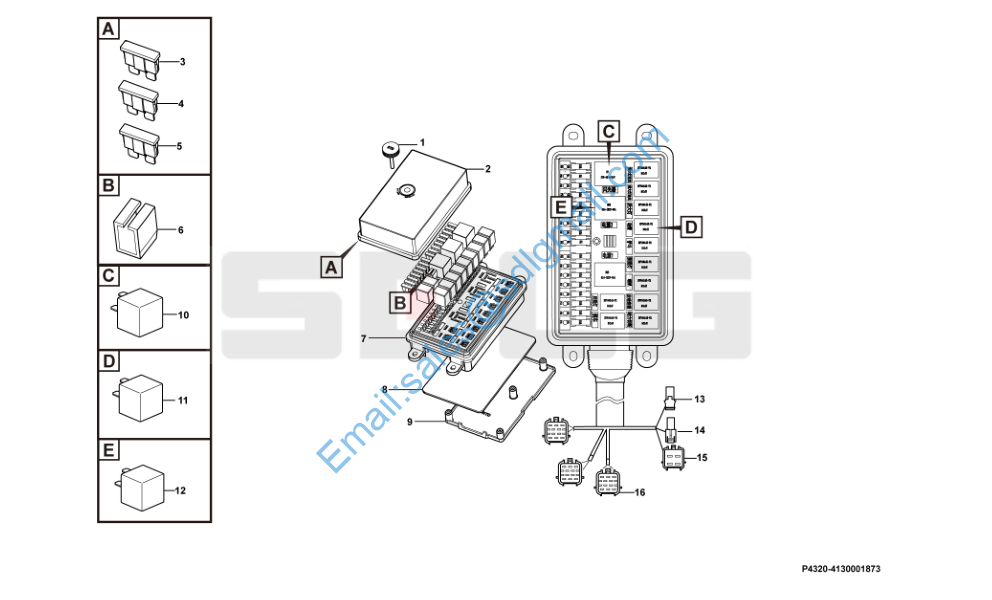

LG918 4130001873 中央电器控制盒(330602) Fuse and relay unit

1 4130001639 旋钮 Knob N 1

2 4130001640 控制盒上盖 Cover N 1

3 4130001324 保险片ATS 5A Fuse Y 3

4 4130001327 保险片ATS 10A Fuse Y 17

5 4130001648 保险片ATS 30A Fuse Y 1

6 4130001330 保险夹 Clamp N 1

7 4130001678 CONTROL BOX PEDESTAL CECB-5 Control box N 1

8 4130001893 PCB板 Plate N 1

9 4130001647 控制盒底盖 Cover N 1

10 4130001399 闪光器RTD-SG-B Flasher unit Y 1

11 4130001398 继电器HFV6024Z-TR Relay Y 5

12 4130000912 蓄电池继电器024-1H2T-80A Relay Y 2

13 4130001400 护套总成DJ7.14-7.8-21 Protecting cover N 1

14 4130001401 护套总成DJ7014-7.8-11 Protecting cover N 1

15 4130001677 KET护套总成MG610331 Casing N 1

16 4130001402 KET护套总成MG610350 Casing N 3
