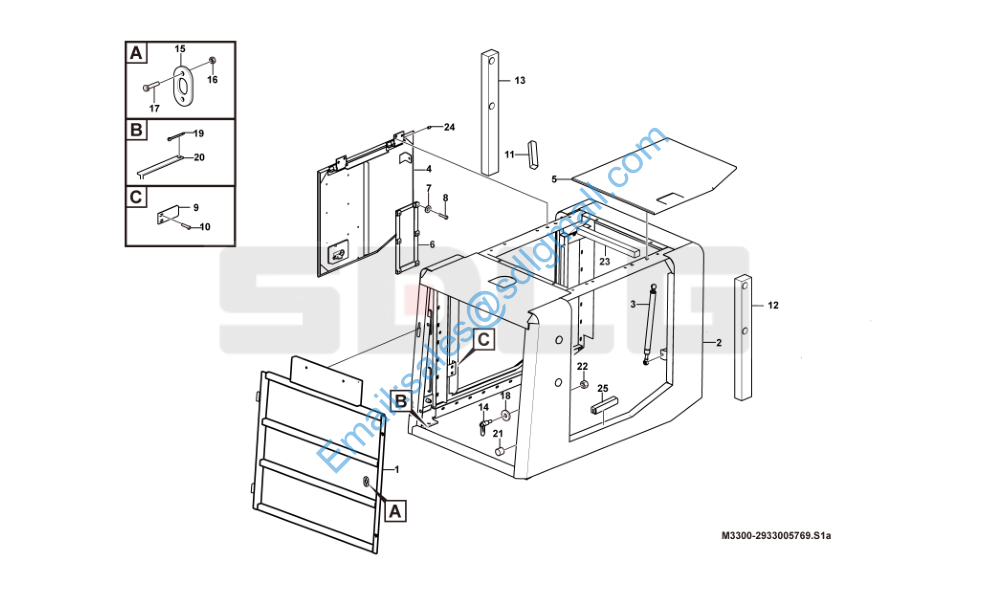

LG918 2933005769 Engine hood system

1 29330057611 窗棂 Grille N 1

2 29330058811 发动机罩 Bonnet Y 1

3 29330006541 气弹簧 Gas spring Y 2

4 29330057881 左侧门 Cover Y 1

5 29330057851 右侧门 Cover Y 1

6 29330062831 衬网 Grille Y 2

7 4015000198 垫圈GB96.1-6EpZn-300HV Washer Y 12

8 4011000101 螺栓GB5783-M6*20EpZn-8.8 Bolt Y 12

9 29330019391 后卡板 Plate Y 2

10 4011000560 螺栓GB16674-M12*25EpZn-8.8 Bolt Y 12

11 29330057651 海绵 Sponge N 2

12 29330057661 海绵 Sponge N 1

13 29330057671 海绵 Sponge N 1

14 29330030981 锁扣 Catch Y 1

15 29330031001 垫板 Plate Y 1

16 4013000212 螺母GB889.1-M5EpZn-8 Nut Y 2

17 4014000302 螺钉GB819.1-M5*12EpZn-4.8 Screw Y 2

18 4015000168 垫圈GB97.1-12EpZn-300HV Washer Y 3

19 4016000035 开口销GB91-4*20EpZn-Q235A Split pin Y 1

20 29340009091 拉杆 Pull rod Y 1

21 29330022651 橡胶垫 Rubber plug Y 2

22 4013000011 螺母GB6170-M12EpZn-8 Nut Y 1

23 29330057681 海绵 Sponge N 1

24 4030000535 油杯JB7940.1-M6 Lubricating nipple Y 4

25 4030000748 卡子胶条GB7526-730 Sealing strip Y 2
