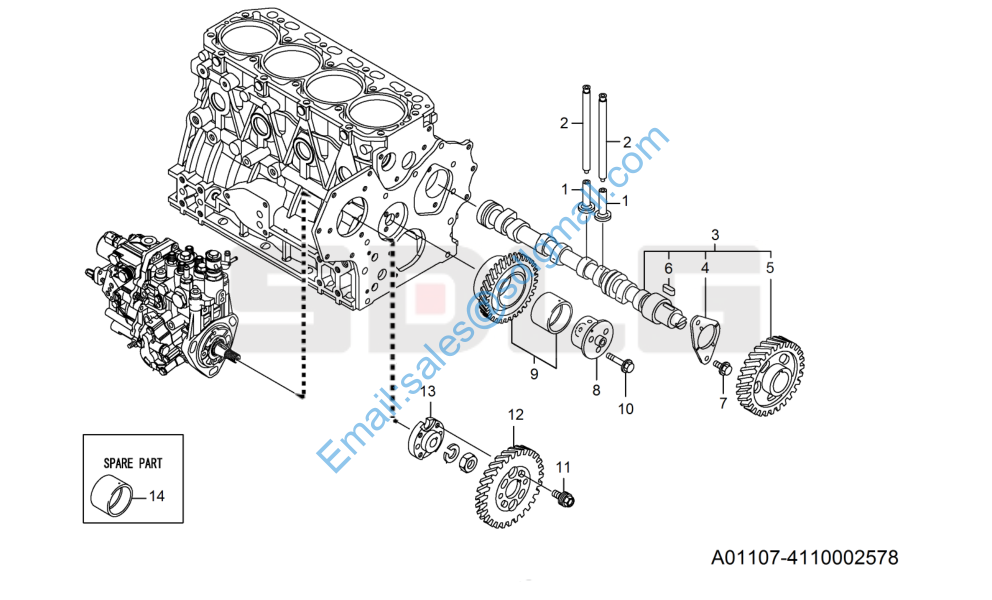

E635F 4110002578 凸轮轴和传动齿轮 Camshaft & driving gear

1 4110000129116 挺柱129150-14200 Tappet Y 8
2 4110002578068 推杆129150-14400 Push rod Y 8
3 4110002578069 凸轮轴总成729402-14580 Camshaft Y 1
4 4110000129119 止推片129150-02450 Thrust washer Y 1
5 4110002578070 齿轮129150-14101 Gear Y 1
6 4110000129121 键7X14 22512-070140 Flat key Y 1
7 4110000678040 螺栓8X14 26106-080142 Screw Y 2
8 4110002578071 轴119803-25050 Shaft Y 1
9 4110002578072 齿轮总成119802-25101 Gear Y 1
10 4110000129035 螺栓M8X40 26106-080402 Screw Y 3
11 4110002578073 螺栓129150-25301 Screw Y 4
12 4110002578074 齿轮119802-25901 Gear Y 1
13 4110002578075 法兰盘158552-51151 Flange Y 1
14 4110002578076 衬套119802-25071 Bearing Y 1
