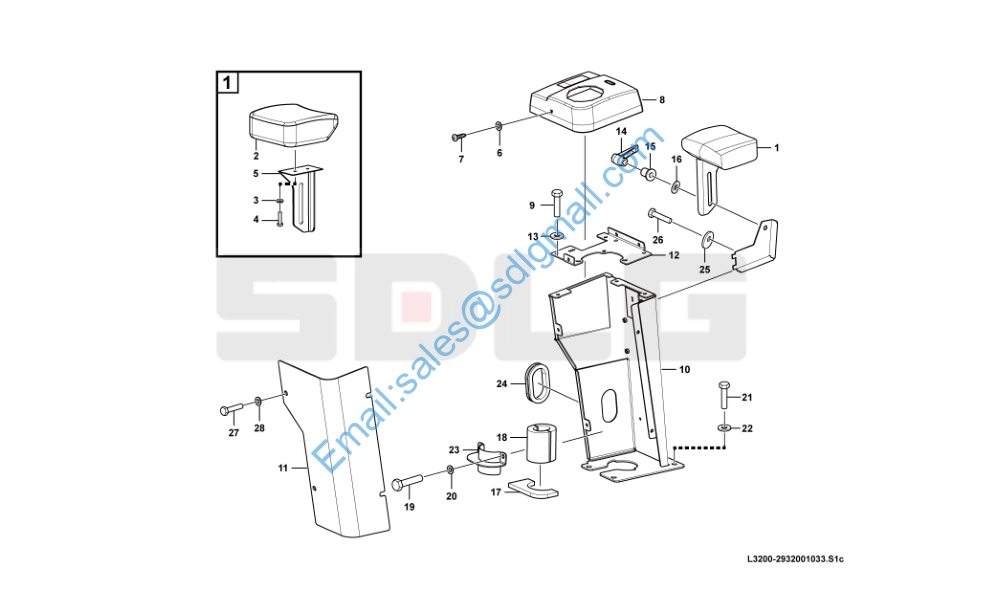

LG933L L3200-2932001033 操纵箱总成 Operate box assembly

1 29320010191 扶手总成 Hand rail Y 1

2 29320009851 扶手 Arm rest Y 1

3 4015000207 垫圈GB97.1-6EpZn-300HV Washer Y 2

4 4011000423 螺栓GB5783-M6*12EpZn-8.8 Screw Y 2

5 29320010202 扶手支架 Bracket Y 1

6 4015000198 垫圈GB96.1-6EpZn-300HV Washer Y 7

7 4014000040 螺钉GB818-M6*20EpZn-4.8 Screw Y 3

8 29320010261 上盖 Cover Y 1

9 4011000289 螺栓GB5783-M6*16EpZn-8.8 Bolt Y 4

10 29320010341 操纵箱焊接总成 Control mechanism Y 1

11 29320010161 外侧板 Plate Y 1

12 29320010241 顶板总成 Plate Y 1

13 4015000207 垫圈GB97.1-6EpZn-300HV Washer Y 3

14 4019000080 手柄JB7270.12-M10*80 Control handle Y 1

15 29320009921 锁紧套 Lock washer Y 1

16 4015000197 垫圈GB96.1-10EpZn-300HV Washer Y 1

17 29320010151 海绵 Sponge Y 1

18 29320010141 海绵 Sponge Y 2

19 4011000481 螺栓GB16674-M8*30EpZn-8.8 Bolt Y 2

20 4015000072 垫圈GB97.1-8EpZn-300HV Washer Y 10

21 4011001280 螺栓GB5783-M10*40flZnyc-8.8-480 Screw Y 4

22 4043002603 防松套LGB331-10*20*16flZnyc-45 Attaching sleeve Y 4

23 29320010171 管夹 Clamp Y 1

24 26240004831 橡胶套 Rubber sleeve Y 1

25 29320010301 限位块 Block Y 1

26 4011000106 螺栓GB5783-M8*25EpZn-8.8 Bolt Y 1

27 4011000102 螺栓GB5783-M8*16EpZn-8.8 Bolt Y 4

28 4015000256 垫圈GB96.1-8EpZn-300HV Washer Y 4
