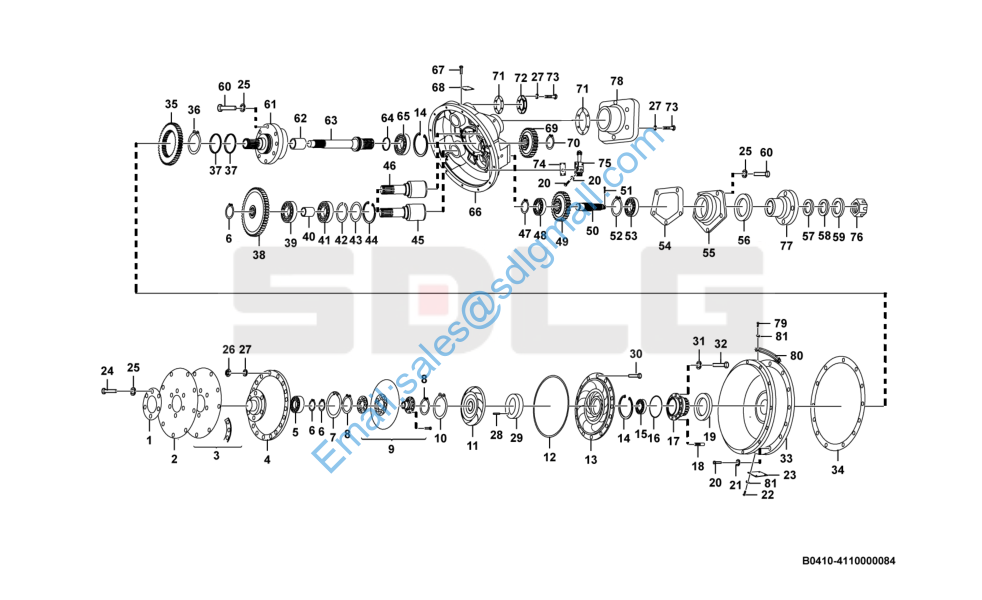

LG933L B0410-4110000084 液力变矩器(370804) Torque converter

1 7200000715 圆垫板YJ315Y-00018 Plate Y 1

2 4110000084083 弹性板YJ315Y-00002 Plate Y 1

3 4110000084096 弹性板总成YJ315Y-30000 Plate Y 1

4 4110000084094 罩轮YJ315X-00002 Cover Y 1

5 7200000741 滚针轴承4074106 Needle bearing Y 1

6 4110000084132 挡圈30 04064-03015 Retaining ring Y 41

7 4015000272 P挡圈GB893.1-55-65Mn Retaining ring Y 2

8 4015000257 挡圈GB894.1-38-65Mn Retaining ring Y 1

9 4110000084116 涡轮组件YJ315X-10000 Turbine Y 1

10 4015000155 挡圈GB894.1-60-65Mn Retaining ring Y 1

11 4110000084072 导轮ZL30D-11-27 Stator Y 1

12 4110000084137 O型圈GB/3452.1-338*3.55 O-ring Y 1

13 4110000084070 泵轮YJ315X-00003 Impeller N 1

14 4015000351 挡圈GB893.1-11-65Mn Retaining ring N 2

15 4021000113 滚动轴承GB276-6212 Ball bearing Y 1

16 4110000004016 O 型圈 130×3.1 07000-E2130 O-ring Y 1

17 4110000084063 泵轮座ZL30D-11-21 Seat Y 1

18 4110000084064 定位销ZL30D-11-22 Pin Y 4

19 4110000217052 骨架油封ZL30D-11-54 100*120*13 Sealing ring Y 1

20 4110000960010 螺栓Bolt M10X30 01010-81030 Screw Y 16

21 4110000004001 弹性垫圈01602-21030 Retaining ring Y 16

22 4110000084138 六角头螺栓GB21-M6*16 Screw N 4

23 4110000084095 盖板YJ315X-00005 Cover plate Y 1

24 4110000960006 螺栓 M12X25 01010-81225 Screw Y 8

25 4110000160054 垫圈01602-21236 Gasket Y 19

26 7200000798 螺母M801580-10806 Nut Y 24

27 4110000084130 垫圈8 01602-20825 Washer Y 42

28 4110000084099 销04025-00620 Pin N 1

29 4110000084067 隔环ZL30D-11-24 Spacer Y 1

30 4011000776 螺栓GB5782-M8*35-8.8 Screw Y 24

31 4015000009 垫圈GB859-8-65Mn Washer Y 8
32 4110000004019 螺栓 M8×22 01010-80822 Screw Y 8
33 4110000084093 中节YJ315X-00001 Flange Y 1
34 4110000084125 垫片ZL30D-11-38 Spacer Y 1
35 4110000084090 齿轮YJ315L-00005A Gear Y 1
36 4015000125 挡圈GB894.1-10-65Mn Retaining ring Y 1
37 4110000217051 密封环ZL30D-11-19 Spacer ring Y 2
38 4110000084091 齿轮YJ315L-00006A Gear Y 2
39 4021000106 P滚动轴承GB276-6206 Ball bearing Y 2
40 4110000084046 套ZL30D-11-40 Sleeve Y 2
41 4110000084139 深沟滚珠轴承GB26-6206NR Bearing Y 2
42 7200000722 止动环ZL30D-11-04 Thrust washer N 2
43 4110000084097 垫圈ZL30D-11-03 Washer Y 2
44 4110000084127 挡圈68 04065-06825 Retaining ring Y 2
45 4110000084089 油泵轴YJ315L-00004 Shaft Y 1
46 4110000084092 油泵轴YJ315L-00007 Shaft Y 1
47 4015000020 挡圈GB894.1-35-65Mn Retaining ring Y 1
48 4021000108 P滚动轴承GB276-6307 Ball bearing Y 1
49 4110000084124 齿轮ZL30D-11-18 Gear Y 1
50 4110000084122 齿轮ZL30D-11-15 Gear Y 1
51 4016000209 P开口销GB91-5*45EpZn-Q235A Split pin N 1
52 4015000017 挡圈GB893.1-90-65Mn Retaining ring Y 1
53 4021000021 滚动轴承GB276-6308 Ball bearing Y 1
54 4110000084036 密封垫ZL30D-11-07 Gasket Y 1
55 4110000084119 油封法兰ZL30D-11-11 Flange Y 1
56 4110002580011 骨架油封07012-70055 Sealing ring Y 2
57 4110000084120 垫圈ZL30D-11-13 Washer Y 1
58 4110000084028 密封垫ZL30D-11-17 Gasket Y 1
59 4110000084123 垫圈ZL30D-11-16 Washer Y 1
60 4110000960004 螺栓01010-81230 Screw Y 11

61 4110000084047 导轮座ZL30D-11-05 Seat Y 1

62 4110000084015 套ZL30D-11-10 Sleeve Y 1

63 4110000084045 主动轴ZL30D-11-09 Drive shaft Y 1

64 4110000084048 密封环ZL30D-11-08 Spacer ring Y 1

65 4021000022 滚动轴承GB276-6310 Ball bearing Y 1

66 4110000084140 变矩器壳体ZL30D-11-01-04 Housing Y 1

67 7200000846 铆钉3*6 04418-03060 Rivet Y 4

68 4110000084141 标牌YG315LG-1-BP01 Name plate N 1

69 4110000084118 齿轮ZL30D-11-06 Gear Y 1

70 4110000084104 挡圈04064-04818 Retaining ring Y 1

71 4110000084087 垫YJ315L-00002 Spacer Y 3

72 4110000084088 盖YJ315L-00003 Cover Y 1

73 4110002580017 六角头螺栓M8*20 01010-80820 Screw Y 18

74 4110000084035 密封垫YJ315X-00009Z Gasket Y 1

75 4110000084021 减压阀总成YJ320-01000ZLG Pressure reducing valve Y 1

76 4110000084121 六角槽形螺ZL30D-11-14 Nut Y 1

77 4110000084135 输出法兰YJ315F-00001 Flange Y 1

78 4110000084086 泵座YJ315L-00001 Seat Y 2

79 4110000084142 六角头螺栓GB21-M6*10 Screw Y 4

80 4110000084115 盖YJ315X-00004 Cover Y 1

81 4110000084133 垫圈6 01642-20608 Washer Y 8
