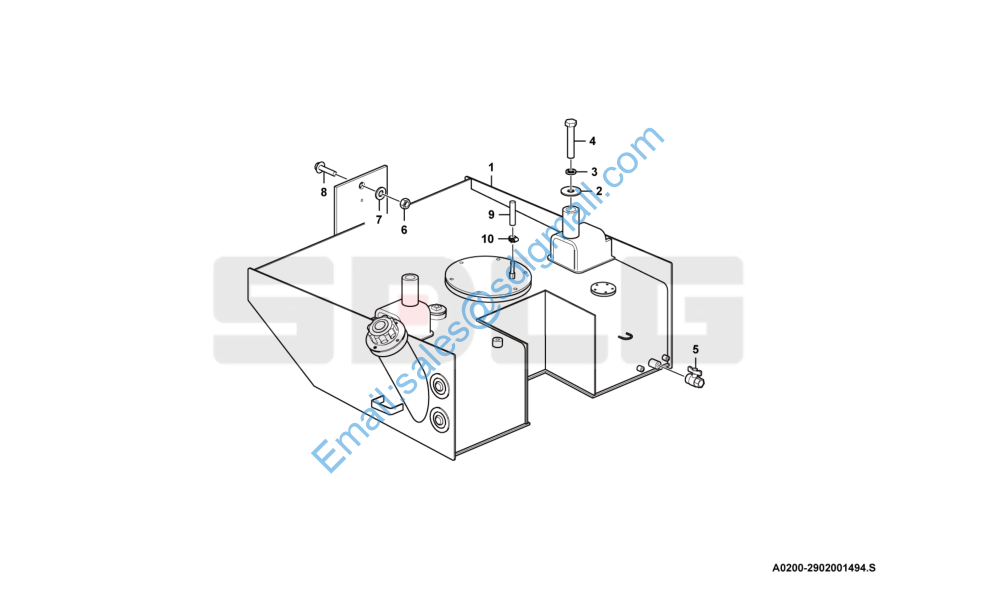

LG933L A0200-2902001494 Fuel tank system

1 29020014951 燃油箱总成 Fuel tank Y 1

2 4015000187 垫圈GB96.1-24EpZn-300HV Washer Y 2

3 4015000031 垫圈GB93-24-65Mn Spring washer Y 2

4 4011000117 螺栓GB5785-M24*2*150EpZn-8.8 Screw Y 2

5 4120000099 球阀MBS216-1/2″ Valve Y 1

6 4013000040 螺母GB6171-M20*2EpZn-8 Nut Y 1

7 4015000176 垫圈GB97.1-20EpZn-300HV Washer Y 1

8 4011000114 螺栓GB5785-M20*2*60EpZn-8.8 Bolt Y 1

9 4120000046 胶管JB8406-A10*560 Hose assembly Y 1

10 4017000015 喉箍JB8870-d25 Clamp Y 1
