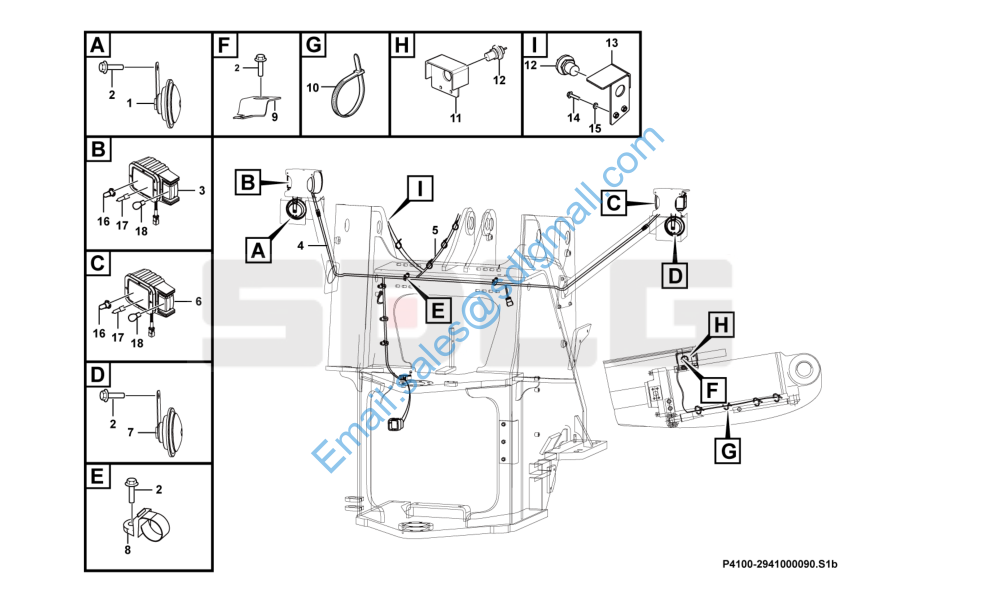

LG936L P4100-2941000090 前车架电气总成 Electrical system-front frame

1 4130001287 盆型喇叭DL125-100L Horn Y 1

2 4011000461 螺栓GB16674-M8*16EpZn-8.8 Bolt Y 12

3 4130001731 左前组合灯LFLDH4-1-24V Lamp Y 1

4 29410000571 前车架线束 Wiring harness Y 1

5 29410000121 接近开关转换线束 Wiring harness Y 1

6 4130001732 右前组合灯LFRDH4-1-24V Lamp Y 1

7 4130001286 盆型喇叭DL125-100H Horn Y 1

8 14400342 扎带 Strip clamp Y 6

9 4130001450 CLIP 1027-005-1200 Clip Y 3

10 4190001833 扎丝RTGB-300ST Cable tie Y 10

11 29140023071 接近开关支架 Bracket Y 1

12 4130001028 接近开关J7-D10B1/DC Position switch Y 2

13 29140013911 接近开关支架 Bracket Y 1

14 4011000197 螺栓GB5783-M12*25EpZn-8.8 Bolt Y 2

15 4015000168 垫圈GB97.1-12EpZn-300HV Washer Y 2

16 4130002035 灯泡PHILIPS 13961(24V4W) Bulb Y 1

17 4130002034 灯泡PHILIPS 13342(24V75/70W) Bulb Y 1

18 4130000618 灯泡PHILIPS 13498(24V 21W) Bulb Y 1
