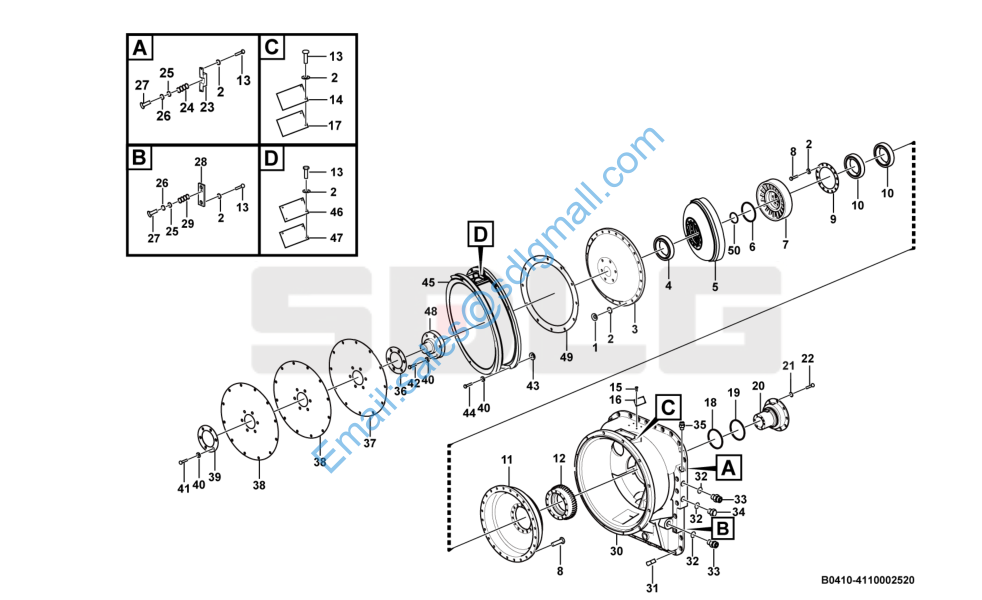

LG936L B0410-4110002520 变矩器(370804) Torque converter

1 7200000798 螺母M801580-10806 Nut Y 24

2 4110000217076 垫圈01602-10825 8 Washer Y 50

3 4110000194001 罩轮YJSW315-2A-00002 Cover Y 1

4 4021000018 滚动轴承GB276-6210 Ball bearing Y 1

5 4110000160072 涡轮组件1YJSW315-2A-10000 Turbine Y 1

6 4110000518004 挡圈04064-08530 85 Retaining ring Y 1

7 4110000160040 导轮1YJSW315-2A-00006 Stator Y 1

8 4110002525001 螺栓01010-80835 M8*35 Screw Y 38

9 4110000011094 压紧垫片YB315Z5-22A Washer Y 1

10 4021000076 滚动轴承GB276-6017 Ball bearing Y 2

11 4110000160046 泵轮1YJSW315-2A-00007 Impeller Y 1

12 4110002525002 齿轮YB315Z5-11BL Gear Y 1

13 4110002525003 螺栓01010-80816 M8*16 Screw Y 12

14 4110000011088 垫板YB315Z5-06D Spacer Y 1

15 7200000846 铆钉3*6 04418-03060 Rivet Y 4

16 4110000160082 铭牌YJSW315-2A-BP Decal Y 1

17 4110000011089 胶垫YB315Z5-07D Gasket Y 1

18 4110000011083 密封环YB315Z5-12A Sealing ring Y 1

19 4110000011082 密封环YB315Z5-33 Sealing ring Y 1

20 4110002525005 导轮座YB315Z5-13D Seat Y 1

21 4110000004001 弹性垫圈01602-21030 Retaining ring Y 9

22 4011000663 螺栓GB21-M10*25EpZn-8.8 Bolt Y 9

23 4110000011100 阀盖YB315Z5-17A Bracket Y 1

24 4110000011101 弹簧YB315Z5-18A Spring Y 1

25 4110000011102 调压垫YB315Z5-16.21 Washer Y 1

26 4110000011107 调压垫YB315Z5-28.29 Washer Y 1

27 4110000011103 阀杆YB315Z5-26A Valve rod Y 2

28 4110000011105 压板YB315Z5-19A Anchor plate Y 1

29 4110000011106 弹簧YB315Z5-20 Spring Y 1

30 4110002525006 壳体YB315Z5-08D-99 Housing Y 1

31 4110000011129 管接头YB315Z5-24K Nipple Y 1
32 4015000209 YB315Z5-09组合密封垫圈30 Sealing washer Y 3
33 4110000011098 管接头YB315Z5-14S Nipple Y 2
34 4110000011104 螺塞YB315Z5-15L① Plug Y 1
35 4110000359052 接头1YB315Z5-10L Nipple Y 1
36 4110000011113 调整垫YB315Z5-34 Washer N 1
37 4110000011114 弹性板总成YJSW315-20000 Plate Y 1
38 4110000011115 弹性板YJSW315-20001 Plate Y 2
39 4110000011116 圆垫板YB315Z5-04 Shim Y 1
40 4110000160054 垫圈01602-21236 Gasket Y 24
41 4110000960004 螺栓01010-81230 Screw Y 6
42 4110002525007 螺栓01010-81245 M1245 Screw Y 6 43 4110000194006 螺母M12-01580-11210 Nut Y 12 44 4110002525008 螺栓01010-81270 M1270 Screw Y 12
45 4110000160056 中节1YJSW315-2A-00001 Flange Y 1
46 4110000194008 盖板YJSW315-2A-00004 Cover plate Y 1
47 4110000194009 垫YJSW315-2A-00005 Sealing ring Y 1
48 4110000160059 过渡轴1YJSW315-2A-20000 Shaft Y 1
49 4110000011118 衬垫YB315Z5-05 Gasket Y 1
50 4110000011096 调整垫YB315Z5-30/31/32 Washer Y 1
