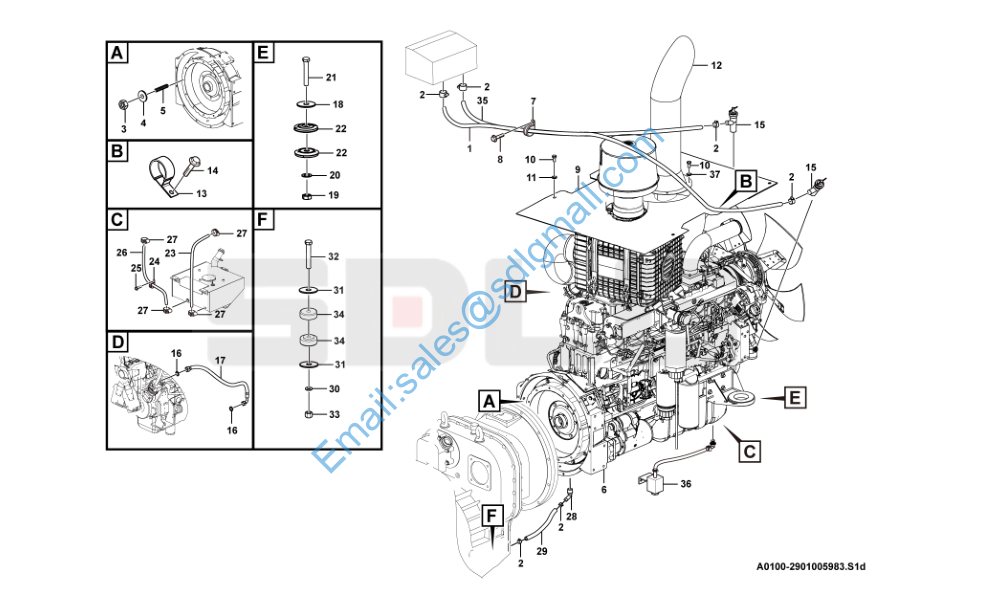

L956F A0100-2901005983 发动机总成 Engine system

1 4090000363 胶管HG2491-16*3000 Hose Y 1

2 4017000024 环箍QC390-D26 Clamp Y 6

3 4013000007 螺母GB6170-M10EpZn-8 Nut Y 12

4 4015000025 垫圈GB93-10-65Mn Spring washer Y 12

5 29010016661 双头螺柱 Stud Y 12

6 4110003210 发动机总成 Engine Y 1

7 29030010811 管夹 Clamp Y 2

8 4011000461 螺栓GB16674-M8*16EpZn-8.8 Bolt Y 2

9 29010059861 上盖板总成 Cover plate Y 1

10 4011001238 螺栓GB5783-M10*20flZnyc-8.8-480 Screw Y 10

11 4015000426 垫圈GB96.1-10flZnyc-300HV-480 Washer Y 6

12 4110001754 排气尾管 Pipe Y 1

13 4041002384 管夹LGB169-A25*12.5 Clamp Y 2

14 4011000137 螺栓GB16674-M12*20EpZn-8.8 Bolt Y 2

15 4120000067 暖风机水阀LG12-NFJSF Valve Y 2

16 29220000171 垫圈 Washer Y 2

17 4120000750 金属软管 Tube Y 1

18 29010024431 垫圈124 Washer Y 2

19 4013000160 螺母GB889.2-M20*1.5EpZn-8 Lock nut Y 2

20 4015000176 垫圈GB97.1-20EpZn-300HV Washer Y 2

21 4011000918 螺栓GB5785-M20*1.5*125EpZn-8.8 Bolt Y 2

22 4110001528 减震器CBB120 Absorber Y 4

23 4043002350 软管LGB334-13*1200E Hose Y 1

24 4041002412 管夹LGB169-A20*10 Clamp Y 1

25 4011000488 螺栓GB16674-M10*16EpZn-8.8 Bolt Y 1

26 4043002683 软管LGB334-13*1800E Hose Y 1

27 4017000010 喉箍JB8870-d20 Clamp Y 4

28 29010000121 回油接头 Nipple Y 1

29 4030000250 胶管JB8406-B16*300 Hose Y 1

30 4015000167 垫圈GB97.1-24EpZn-300HV Washer Y 2

31 29050019331 垫圈 Washer Y 4

32 4011000378 螺栓GB5785-M24*2*160EpZn-8.8 Bolt Y 2

33 4013000157 螺母GB889.2-M24*2EpZn-8 Lock nut Y 2

34 4110001527 减震器CBB114 Absorber Y 4

35 4090000370 胶管HG2491-16*2700 Hose Y 1

36 29010067451 发动机放油模块 Block N 1

37 4015000433 垫圈GB97.1-10flZnyc-300HV-480 Washer Y 1
