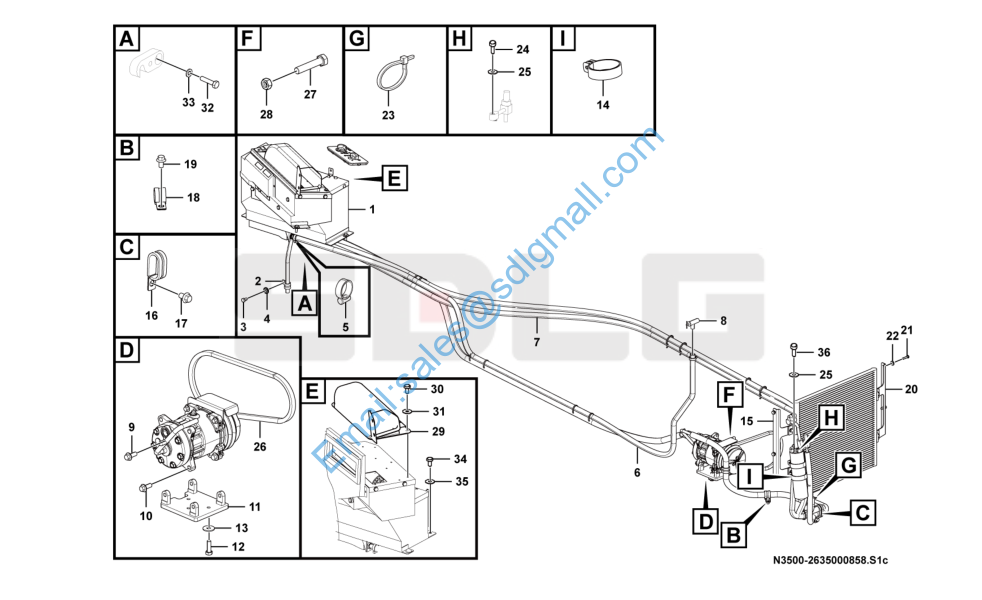

B876F N3500-2635000858 空调暖风总成 Air conditioning system

1 4130002853 B877F(玉柴)空调总成 Air conditioning unit Y 1

2 4041002377 管夹LGB169-A20*12.5 Clamp Y 1

3 4011000080 螺栓GB5783-M10*16EpZn-8.8 Bolt Y 1

4 4015000162 垫圈GB97.1-10EpZn-300HV Washer Y 2

5 4017000015 喉箍JB8870-d25 Clamp Y 4

6 4043004085 胶管LGB339-16*2700 Hose Y 1

7 4043002881 胶管LGB339-16*2800*60 Hose Y 1

8 14529015 阀 Valve N 1

9 4011000972 螺栓GB5786-M10*1.25*30EpZn-10.9 Screw Y 1

10 4011000474 螺栓GB16674-M10*25EpZn-8.8 Bolt Y 4

11 26350008591 压缩机支架 Compressor bracket Y 1

12 4011000084 螺栓GB5783-M10*30EpZn-8.8 Bolt Y 3

13 4015000197 垫圈GB96.1-10EpZn-300HV Washer Y 3

14 26350008741 管夹 Clamp Y 2

15 26350008151 支架 Bracket Y 1

16 4041002386 管夹LGB169-B25*12.5 Clamp Y 1

17 4011001294 螺栓GB16674.1-M10*20flZnyc-8.8-480 Screw Y 1

18 4041002384 管夹LGB169-A25*12.5 Clamp Y 2

19 4011000488 螺栓GB16674-M10*16EpZn-8.8 Bolt Y 3

20 26350008131 支架 Bracket Y 1

21 4011001247 螺栓GB5783-M8*20flZnyc-8.8-480 Screw Y 8

22 4015000430 垫圈GB97.1-8flZnyc-300HV-480 Washer Y 8

23 4190000020 扎丝LG13-ZS4*250 Cable tie Y 13

24 4011001389 螺栓GB5783-M6*25flZnyc-8.8-480 Screw Y 4

25 4015000424 垫圈GB97.1-6flZnyc-300HV-480 Washer Y 6

26 4110000624 皮带A17-370 Belt Y 1

27 4011001479 螺栓GB5783-M10*50flZnyc-8.8-480 Screw Y 1

28 4013000370 螺母GB6170-M10flZnyc-8-480 Nut Y 1

29 29290012761 空调接口风道 Air duct Y 1

30 4011000423 螺栓GB5783-M6*12EpZn-8.8 Screw Y 3

31 4015000198 垫圈GB96.1-6EpZn-300HV Washer Y 3

32 4011000276 螺栓GB5783-M6*25EpZn-8.8 Bolt Y 1

33 4015000207 垫圈GB97.1-6EpZn-300HV Washer Y 1

34 4011000105 螺栓GB5783-M8*20EpZn-8.8 Bolt Y 3

35 4015000256 垫圈GB96.1-8EpZn-300HV Washer Y 3

36 4014000278 螺钉GB70.1-M6*25EpZn-8.8 Screw Y 2
