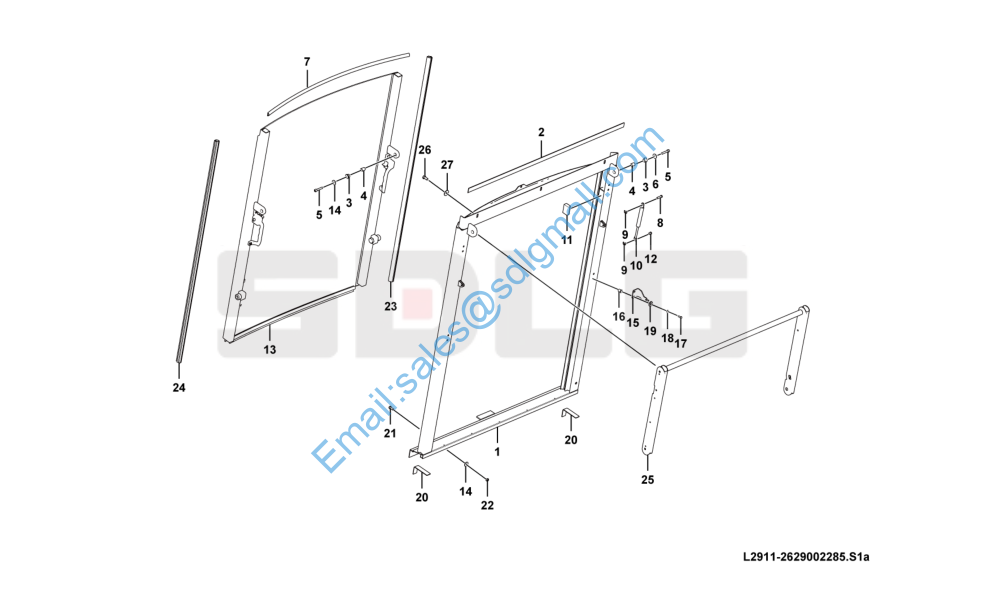

B876F L2911-2629002285 后部推拉窗总成 Cab window

1 26290025231 后窗框架总成 Plate Y 1

2 26290017401 海绵1210*25*3 Sponge Y 1

3 26290017251 铜套 Sleeve N 4

4 26290017261 轴套 Sleeve Y 4

5 4014000527 螺钉GB70.1-M8*45flZnyc-8.8-480 Screw Y 4

6 4015000430 垫圈GB97.1-8flZnyc-300HV-480 Washer Y 18

7 26290017411 玻璃密封条 Sealing Y 1

8 26290017301 销轴 Pin Y 2

9 4015000355 挡圈GB896-6-65Mn Retaining ring Y 4

10 26290017281 气弹簧总成 Air spring Y 2

11 26290017431 固定块 Block Y 2

12 26290017291 销轴 Pin Y 2

13 26290017021 后窗滑动总成 Frame Y 1

14 4015000425 垫圈GB96.1-8flZnyc-300HV-480 Washer Y 10

15 26290021791 支架 Bracket Y 2

16 4013000321 铆螺母GB17880.1-M6*15EpZn-ML10 Nut Y 6

17 4011001285 螺栓GB5783-M6*16flZnyc-8.8-480 Screw Y 4

18 4015000424 垫圈GB97.1-6flZnyc-300HV-480 Washer Y 4

19 4015000428 垫圈GB97.1-12flZnyc-300HV-480 Washer Y 4

20 26290017421 海绵135*25*3 Sponge Y 2

21 4011001247 螺栓GB5783-M8*20flZnyc-8.8-480 Screw Y 3

22 4013000373 螺母GB6170-M8flZnyc-8-480 Nut Y 3

23 26290020751 左侧密封条 Sealing strip Y 1

24 26290020741 右侧密封条 Sealing strip Y 1

25 26290017211 连杆总成 Connecting rod Y 1

26 4011001238 螺栓GB5783-M10*20flZnyc-8.8-480 Screw Y 3

27 4015000426 垫圈GB96.1-10flZnyc-300HV-480 Washer Y 3
