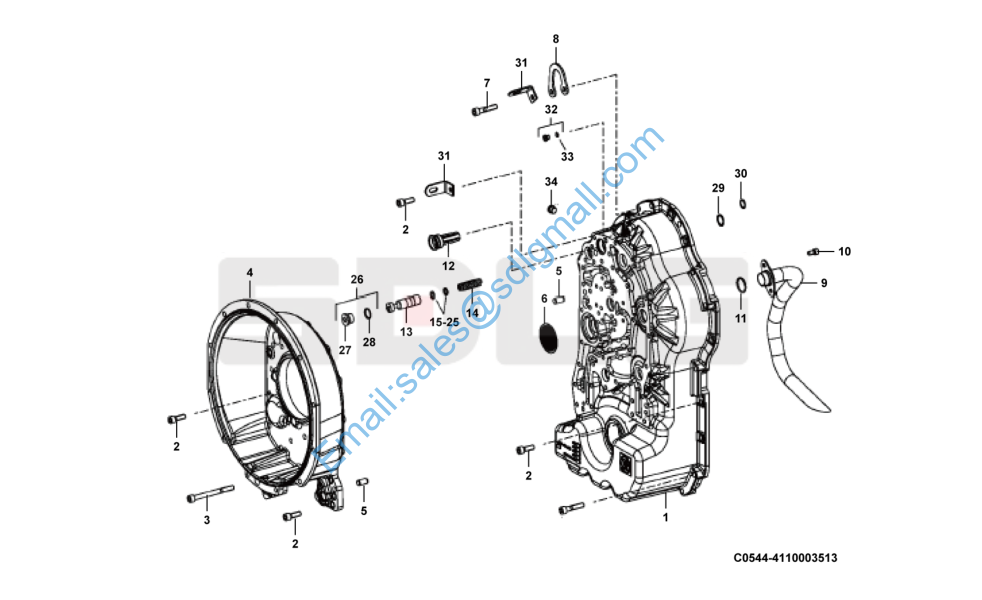

B876F C0544-4110003513 变速箱壳体总成4661.101.807 Transmission assembly

1 4110003513052 变速箱体4661.301.086 Housing N 1
2 4110003513053 螺丝0636.103.279 Screw N 54
3 4110003513054 螺丝0636.103.280 Screw N 1
4 4110003513055 箱体4661.330.008 Converter housing N 1
5 4110003513019 销0631.306.174 Pin N 2
6 4110003513056 过滤网0501.321.521 Filter Y 1
7 4110003513057 螺丝0636.103.285 Screw N 10
8 4110003513058 支架4660.301.009 Bracket N 1
9 4110003513059 吸油管4661.221.001 Tube N 1
10 4110003513060 螺丝0636.103.274 Screw N 2
11 4110003513061 O型圈0634.100.317 O-ring N 1
12 4110003513062 阀0501.211.384 Valve N 1
13 4110003513063 活塞4661.306.003 Piston N 1
14 4110003513064 压缩弹簧0732.043.009 Compression spring N 1
15 4110003513065 定位环A=0,80 0730.006.260 Spacer ring N 1
16 4110003513066 定位环A=1,0 0730.006.261 Spacer ring N 1
17 4110003513067 定位环A=1,2 0730.006.262 Spacer ring N 1
18 4110003513068 定位环A=1,4 0730.006.263 Spacer ring N 1
19 4110003513069 定位环A=1,60 0730.006.264 Spacer ring N 1
20 4110003513070 定位环A=1,80 0730.006.265 Spacer ring N 1
21 4110003513071 定位环A=2,0 0730.006.266 Spacer ring N 1
22 4110003513072 定位环A=2,20 0730.006.267 Spacer ring N 1
23 4110003513073 定位环A=2,4 0730.006.268 Spacer ring N 1
24 4110003513074 定位环A=2,60 0730.006.269 Spacer ring N 1
25 4110003513075 定位环A=2,8 0730.006.270 Spacer ring N 1
26 4110003513076 堵塞总成4660.201.007 Plug N 1
27 4110003513077 堵头0636.103.283 Plug N 1
28 4110003513078 O型圈0634.313.558 O-ring N 1
29 4110003513079 O型圈0634.303.238 O-ring N 1
30 4110003513080 O型圈0634.304.309 O-ring N 1

31 4110003513081 支架4660.301.010 Bracket N 2
32 4110003513049 堵头4660.201.008 Plug N 1
33 7200001705 O形圈(8*1.5)0634303280 O-ring Y 1
34 4110003513050 堵头0636.100.117 Plug N 2
