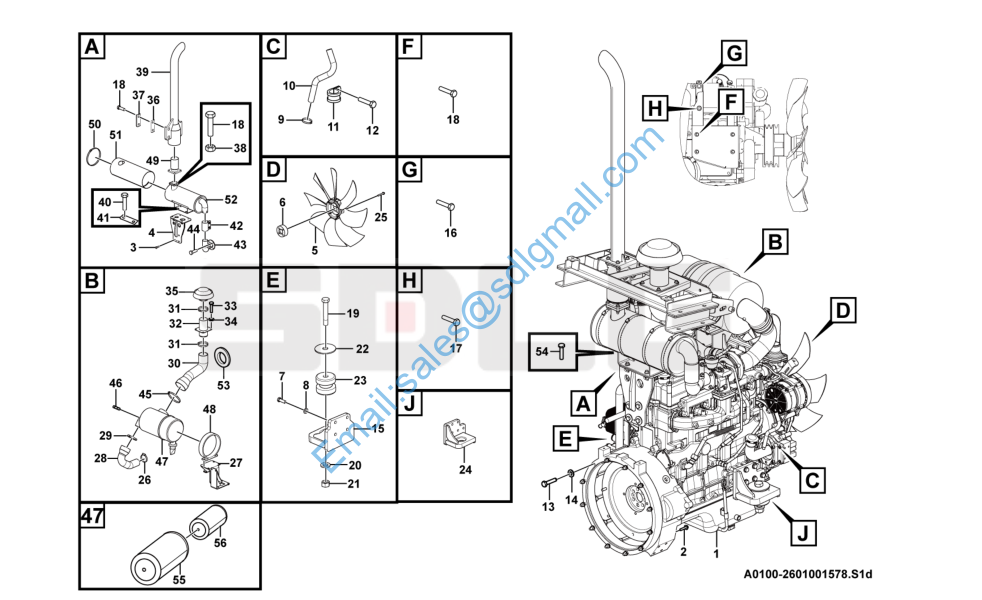

B876F A0100-2601001578 Engine system

1 4110003170 发动机YC4A105Z-T20(A8WGC) Engine Y 1

2 4011001212 螺栓GB16674.1-M10*55flZnyc-10.9-480 Screw Y 4

3 4011000477 螺栓GB16674-M12*35EpZn-8.8 Bolt Y 4

4 26010015861 消音器支架 Silencer mounting Y 1

5 4110002287 风扇 Fan Y 1

6 26010013241 风扇垫块 Spacer Y 1

7 4011001205 螺栓GB5783-M12*35flZnyc-10.9-480 Screw Y 8

8 4015000428 垫圈GB97.1-12flZnyc-300HV-480 Washer Y 8

9 4017000015 喉箍JB8870-d25 Clamp Y 2

10 26010017141 软管 Hose Y 1

11 4041002377 管夹LGB169-A20*12.5 Clamp Y 1

12 4011000137 螺栓GB16674-M12*20EpZn-8.8 Bolt Y 2

13 4011000048 螺栓GB5782-M10*50EpZn-8.8 Bolt Y 12

14 4015000162 垫圈GB97.1-10EpZn-300HV Washer Y 12

15 26010015821 发动机左支架 Engine bracket Y 1

16 4011000488 螺栓GB16674-M10*16EpZn-8.8 Bolt Y 2

17 4014000230 螺钉GB70.1-M10*20Ep.Zn-8.8 Screw Y 1

18 4011001301 螺栓GB16674.1-M8*30flZnyc-8.8-480 Screw Y 12

19 4011001100 螺栓GB5782-M22*130EpZn-10.9 Screw Y 2

20 26010002331 垫圈 Washer Y 2

21 4013000209 螺母GB6170-M22EpZn-10 Nut Y 2

22 26050001841 垫圈22 Washer Y 2

23 4110000528 减振器EH9075-1 Absorber Y 2

24 26010015831 发动机右支架 Engine bracket Y 1

25 4011001340 螺栓GB16674.1-M8*50flZnyc-10.9-480 Screw Y 4

26 4017000014 喉箍JB8870-d80 Clamp Y 1

27 26010015841 支架 Bracket Y 1

28 26010015871 胶管 Hose Y 1

29 4017000012 喉箍JB8870-d110 Clamp Y 1

30 26010015881 进气胶管 Hose Y 1

31 4017000006 喉箍JB8870-d100 Clamp Y 2

32 26010015921 进气钢管 Pipe Y 1

33 4011001397 螺栓GB5783-M8*25flZnyc-8.8-480 Screw Y 4

34 4015000425 垫圈GB96.1-8flZnyc-300HV-480 Washer Y 4

35 26010011291 防雨帽 Cap Y 1

36 26010015901 垫片 Shim Y 2

37 26010015911 板 Plate Y 2

38 4013000373 螺母GB6170-M8flZnyc-8-480 Nut Y 4

39 26010015892 排气尾管 Exhaust pipe Y 1

40 4011000475 螺栓GB16674-M10*30EpZn-8.8 Bolt Y 4

41 26010020151 板 Plate Y 4

42 4110000975 排气管夹P14518748 Exhaust pipe clamp Y 1

43 26010015941 排气管 Pipe Y 1

44 4011001296 螺栓GB16674.1-M8*20flZnyc-8.8-480 Screw Y 4

45 4017000002 喉箍JB8870-d140 Clamp Y 1

46 4110000682 压差指示器X002277 Indicator Y 1

47 4110003181 空滤器G098293 Air cleaner Y 1

48 4110000681 抱箍P780532 Clamp Y 2

49 26010015931 排气钢管 Pipe Y 1

50 4017000034 喉箍JB8870-d210 Clamp Y 5

51 26010015951 隔热垫 Heat insulation Y 1

52 4110003699 消音器A8WGD Silencer N 1

53 26010019561 密封海绵 Sponge Y 1

54 4011000461 螺栓GB16674-M8*16EpZn-8.8 Bolt Y 1

55 4110000679001 空气滤清器主滤芯P780522 Air filter insert Y 1

56 4110000679002 空滤器内滤芯P780523 Air filter insert Y 1
