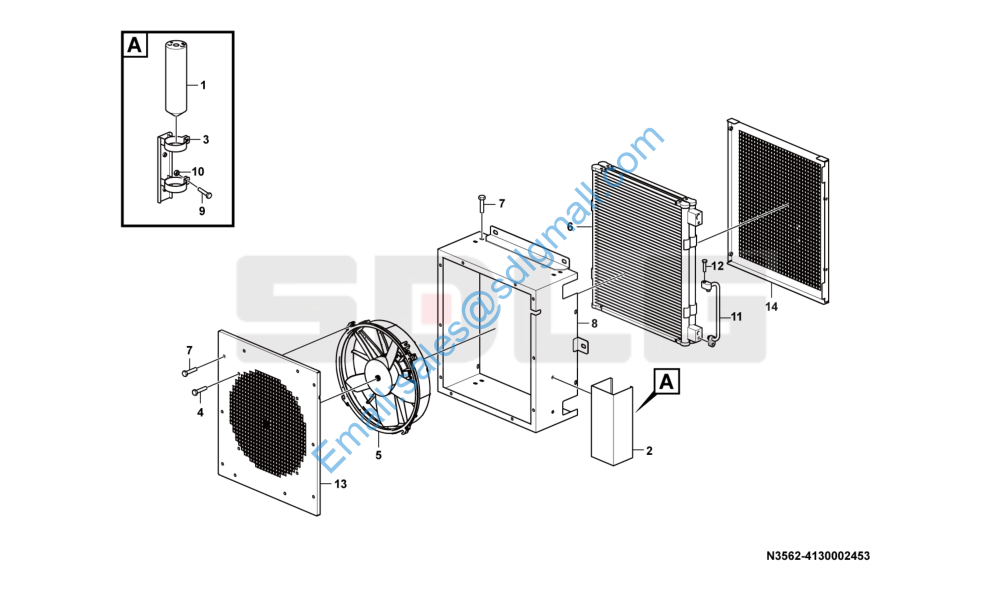

LFT26 N3562-4130002453 冷凝器总成(330112) Condenser

1 4190002863 储液器 Reservoir Y 1
2 4130002453001 储液器保护架GKL33-5.0H1-20 Bracket Y 1
3 4190002907006 储液器卡箍GKL33-5.0H1-30 Clamp Y 1
4 4011000778 P-螺栓GB5783-M625-8.8 Screw Y 4 5 4190002907003 冷凝风机GKL33-5.0H-30 Fan Y 1 6 4130002453002 冷凝器GKL33-5.0H1-40 Condenser Y 1 7 4011000423 螺栓GB5783-M612EpZn-8.8 Screw Y 27
8 4130002453003 冷凝器壳体GKL33-5.0H5-20 Housing Y 1
9 4011000101 螺栓GB5783-M620EpZn-8.8 Bolt Y 2 10 4013000211 螺母GB889.1-M6EpZn-8 Nut Y 2 11 4130002453004 连接管组件GKL33-5.0H1-60 Pipe Y 1 12 4011000291 螺栓GB5783-M630EpZn-8.8 Screw Y 1
13 4130002453005 出风板GKL33-5.0H5-01 Plate Y 1
14 4130002453006 进风罩组件GKL33-5.0H1-70 Return strainer Y 1
