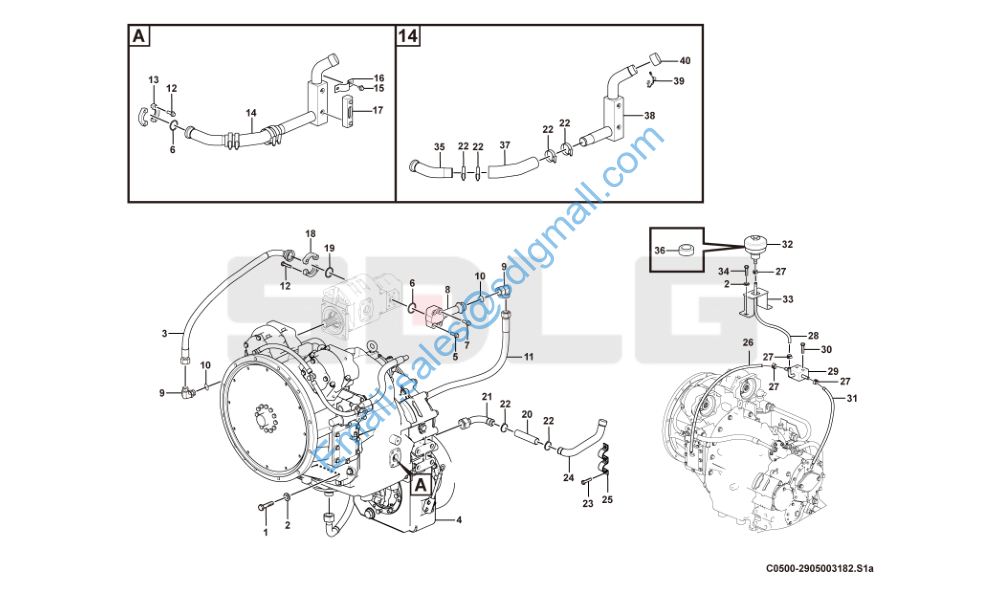

LFT26 C0500-2905003182 变速箱总成 Transmission

1 4011000184 螺栓GB5783-M10*40EpZn-8.8 Bolt Y 12

2 4015000162 垫圈GB97.1-10EpZn-300HV Washer Y 14

3 29050026221 变速泵出油管 Hose assembly Y 1

4 29050029663 VRT200变速箱总成 Transmission Y 1

5 4011000163 螺栓GB16674-M10*40EpZn-8.8 Bolt Y 2

6 4030000029 O形圈GB3452.1-37.5*3.55G O-ring Y 2

7 4011000307 螺栓GB16674-M10*45EpZn-8.8 Bolt Y 2

8 29050026421 弯管总成 Tube Y 1

9 4041001211 组合接头LGB143-03625 Nipple Y 2

10 4030000817 O形圈GB3452.1-25.8*1.80G-FPM O-ring Y 2

11 29050021251 变速泵进油管 Hose Y 1

12 4011001300 螺栓GB16674.1-M10*30flZnyc-8.8-480 Screw Y 8

13 4041000056 分体法兰LGB117-312550 Flange half Y 1

14 29050033361 加油管总成 Hose assembly Y 1

15 4011001297 螺栓GB16674.1-M8*16flZnyc-8.8-480 Screw Y 2

16 29050000091 管夹 Clamp Y 1

17 4120005173 液位计YWZ-100 Water level gauge Y 1

18 4041000043 分体法兰LGB117-310490 Flange half Y 1

19 4030000026 O形圈GB3452.1-32.5*3.55G O-ring Y 1

20 4030001056 胶管JB8406-B38*100 Hose Y 1

21 29050019951 分动箱加油管 Oil pipe Y 1

22 4017000007 喉箍JB8870-d60 Clamp Y 6

23 4011001337 螺栓GB16674.1-M12*20flZnyc-8.8-480 Screw Y 3

24 29050030311 分动箱弯管总成 Tube Y 1

25 29050022801 管夹 Clamp Y 1

26 4030000973 胶管JB8406-B10*300 Hose Y 1

27 4190000343 喉箍JB8870-d16 Clamp Y 6

28 4030000974 胶管JB8406-B10*1900 Hose Y 1

29 29050017381 三通块总成 Connection block Y 1

30 4011000309 螺栓GB16674-M10*50EpZn-8.8 Bolt Y 2

31 4120000388 胶管JB8406-B10*800 Hose assembly Y 1

32 4110000852 空气滤清器C-M33×2 Air cleaner Y 1

33 29050017341 空气滤清器支架 Bracket Y 1

34 4011001238 螺栓GB5783-M10*20flZnyc-8.8-480 Screw Y 2

35 29050023401 弯管总成 Tube Y 1

36 4120005390 空滤滤芯C-X-32 Filter insert Y 1

37 4120000058 胶管JB8406-B38*610 Hose assembly Y 1

38 29050022752 弯管总成 Tube Y 1

39 29050025942 连接链 Chain N 1

40 29050025721 加油管盖总成 Oil filler cap assembly Y 1
