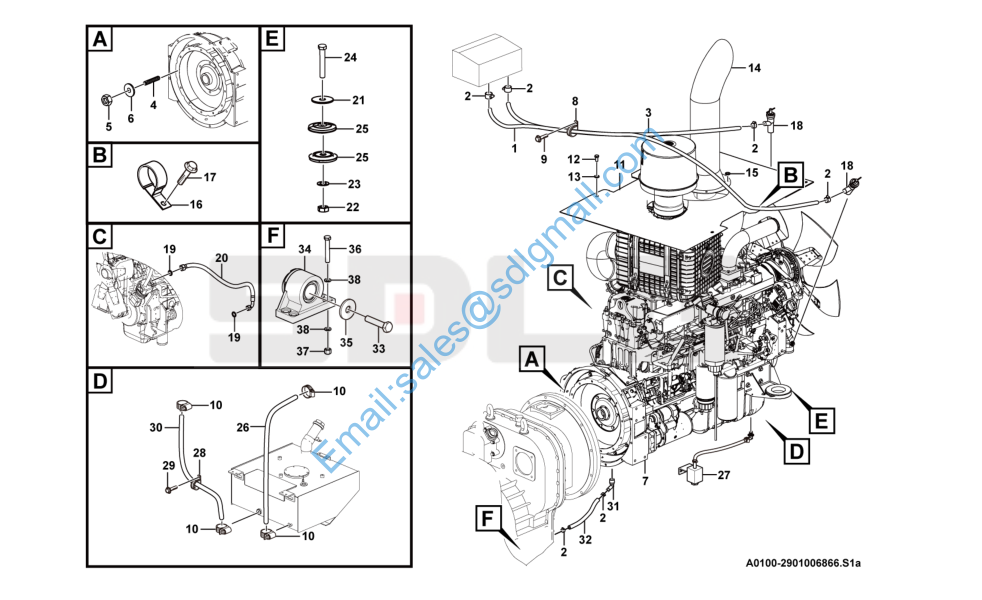

LFT26 A0100-2901006866 Engine

1 4090000363 胶管HG2491-16*3000 Hose Y 1

2 4017000024 环箍QC390-D26 Clamp Y 6

3 4090000169 胶管HG2491-16*2800 Hose Y 1

4 29010023401 双头螺柱 Stud Y 12

5 4013000007 螺母GB6170-M10EpZn-8 Nut Y 12

6 4015000025 垫圈GB93-10-65Mn Spring washer Y 12

7 4110003068 发动机总成 Engine Y 1

8 29030010811 管夹 Clamp Y 2

9 4011000461 螺栓GB16674-M8*16EpZn-8.8 Bolt Y 2

10 4017000010 喉箍JB8870-d20 Clamp Y 4

11 29010059971 上盖板 Cover plate Y 1

12 4011001238 螺栓GB5783-M10*20flZnyc-8.8-480 Screw Y 10

13 4015000426 垫圈GB96.1-10flZnyc-300HV-480 Washer Y 6

14 4110001754 排气尾管 Pipe Y 1

15 4015000433 垫圈GB97.1-10flZnyc-300HV-480 Washer Y 4

16 4041002384 管夹LGB169-A25*12.5 Clamp Y 2

17 4011000137 螺栓GB16674-M12*20EpZn-8.8 Bolt Y 2

18 4120000067 暖风机水阀LG12-NFJSF Valve Y 2

19 29220000171 垫圈 Washer Y 2

20 4120000750 金属软管 Tube Y 1

21 29010024431 垫圈124 Washer Y 2

22 4013000160 螺母GB889.2-M20*1.5EpZn-8 Lock nut Y 2

23 4015000176 垫圈GB97.1-20EpZn-300HV Washer Y 2

24 4011000918 螺栓GB5785-M20*1.5*125EpZn-8.8 Bolt Y 2

25 4110001528 减震器CBB120 Absorber Y 4

26 4043002350 软管LGB334-13*1200E Hose Y 1

27 29010068671 发动机放油模块 Block N 1

28 4041002412 管夹LGB169-A20*10 Clamp Y 1

29 4011000488 螺栓GB16674-M10*16EpZn-8.8 Bolt Y 1

30 4043002683 软管LGB334-13*1800E Hose Y 1

31 29010000121 回油接头 Nipple Y 1
32 4030001061 胶管JB8406-B16380 Hose Y 1

33 4011000835 螺栓GB5783-M2040EpZn-10.9 Screw Y 2
34 4110000943 减震器总成 Absorber Y 2
35 29050017851 垫圈 Washer Y 2
36 4011000951 螺栓GB5785-M181.575EpZn-10.9 Screw Y 8
37 4013000252 螺母GB889.2-M18*1.5EpZn-10 Nut Y 8
38 4015000182 垫圈GB97.1-18EpZn-300HV Washer Y 16
