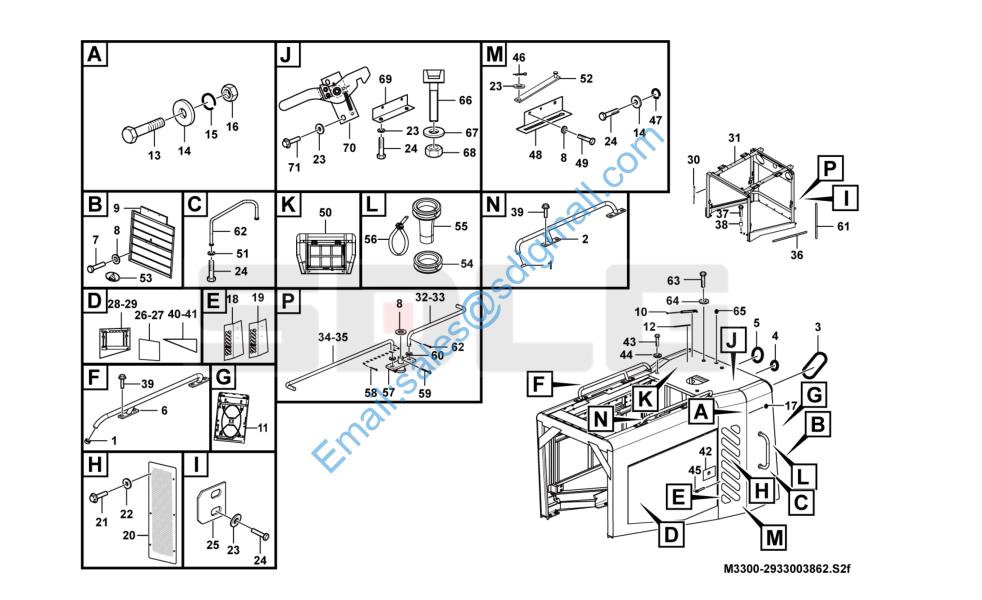

L978F 发动机罩总成 Engine bonnet assembly M3300-2933003862

1 29330011232 橡胶塞 Rubber plug Y 2

2 29330016441 左上扶手 Hand rail Y 1

3 4043002383 卡子胶条LGB320-U600 Sealing strip Y 2

4 4043000948 卡子胶条LGB320-U210 Sealing strip Y 1

5 4043003177 卡子胶条LGB320-U320 Sealing strip Y 1

6 29330016461 右上扶手 Hand rail Y 1

7 4011000081 螺栓GB5783-M10*20EpZn-8.8 Bolt Y 4

8 4015000162 垫圈GB97.1-10EpZn-300HV Washer Y 8

9 29330064121 窗棂 Grille Y 1

10 4041002632 气弹簧LGB171-10-130-400(B-B)350 Gas spring Y 1

11 29330027272 后罩 Hood Y 1

12 4043003179 卡子胶条LGB320-S2750 Sealing strip Y 1

13 4011000207 螺栓GB5783-M12*45EpZn-8.8 Bolt Y 5

14 29330023151 垫圈12 Washer Y 17

15 4043003180 开口垫片LGB337-2*13*180*50*1 Plate Y 2

16 4013000011 螺母GB6170-M12EpZn-8 Nut Y 5

17 4030000535 油杯JB7940.1-M6 Lubricating nipple Y 9

18 29330039051 右后侧门 Cover Y 1

19 29330039081 左后侧门 Cover Y 1

20 29330027671 衬网 Protecting grating Y 2

21 4011000101 螺栓GB5783-M6*20EpZn-8.8 Bolt Y 12

22 4015000198 垫圈GB96.1-6EpZn-300HV Washer Y 12

23 4015000168 垫圈GB97.1-12EpZn-300HV Washer Y 21

24 4011000197 螺栓GB5783-M12*25EpZn-8.8 Bolt Y 26

25 29330044731 卡板 Clamp N 4

26 29330053041 海绵 Sponge Y 1

27 29330053051 海绵 Sponge Y 1

28 29330027712 右侧门 Cover Y 1

29 29330027782 左侧门 Cover Y 1

30 4041002803 气弹簧LGB171-10-240-610(B-B)300 Gas spring Y 4

1 29330011232 橡胶塞 Rubber plug Y 2

2 29330016441 左上扶手 Hand rail Y 1

3 4043002383 卡子胶条LGB320-U600 Sealing strip Y 2

4 4043000948 卡子胶条LGB320-U210 Sealing strip Y 1

5 4043003177 卡子胶条LGB320-U320 Sealing strip Y 1

6 29330016461 右上扶手 Hand rail Y 1

7 4011000081 螺栓GB5783-M10*20EpZn-8.8 Bolt Y 4

8 4015000162 垫圈GB97.1-10EpZn-300HV Washer Y 8

9 29330064121 窗棂 Grille Y 1

10 4041002632 气弹簧LGB171-10-130-400(B-B)350 Gas spring Y 1

11 29330027272 后罩 Hood Y 1

12 4043003179 卡子胶条LGB320-S2750 Sealing strip Y 1

13 4011000207 螺栓GB5783-M12*45EpZn-8.8 Bolt Y 5

14 29330023151 垫圈12 Washer Y 17

15 4043003180 开口垫片LGB337-2*13*180*50*1 Plate Y 2

16 4013000011 螺母GB6170-M12EpZn-8 Nut Y 5

17 4030000535 油杯JB7940.1-M6 Lubricating nipple Y 9

18 29330039051 右后侧门 Cover Y 1

19 29330039081 左后侧门 Cover Y 1

20 29330027671 衬网 Protecting grating Y 2

21 4011000101 螺栓GB5783-M6*20EpZn-8.8 Bolt Y 12

22 4015000198 垫圈GB96.1-6EpZn-300HV Washer Y 12

23 4015000168 垫圈GB97.1-12EpZn-300HV Washer Y 21

24 4011000197 螺栓GB5783-M12*25EpZn-8.8 Bolt Y 26

25 29330044731 卡板 Clamp N 4

26 29330053041 海绵 Sponge Y 1

27 29330053051 海绵 Sponge Y 1

28 29330027712 右侧门 Cover Y 1

29 29330027782 左侧门 Cover Y 1

30 4041002803 气弹簧LGB171-10-240-610(B-B)300 Gas spring Y 4

31 29330039111 框架总成 Frame Y 1

32 29330000171 短拉杆（右） Pull rod Y 1

33 29330000181 短拉杆（左） Pull rod Y 1

34 29330044751 左长拉杆 Pull rod Y 1

35 29330044741 右长拉杆 Pull rod Y 1

36 4043000955 卡子胶条LGB320-S1000 Sealing strip Y 2

37 4011000594 螺栓GB5783-M16*60EpZn-8.8 Screw Y 6

38 4043002121 防松套LGB331-16*30*30EpZn-45 Attaching sleeve Y 6

39 4011000091 螺栓GB5783-M12*40EpZn-8.8 Bolt Y 8

40 29330053061 海绵 Sponge Y 1

41 29330053071 海绵 Sponge Y 1

42 4190003748 机罩门锁总成NBS504LG-1 Lock Y 2

43 4011001241 螺栓GB5783-M12*25flZnyc-8.8-480 Screw Y 4

44 4015000427 垫圈GB96.1-12flZnyc-300HV-480 Washer Y 4

45 4190000916 门锁NBS5013A Door lock Y 2

46 4016000035 开口销GB91-4*20EpZn-Q235A Split pin Y 2

47 4043002299 开口垫片LGB337-3*13*125*25*1 Plate Y 2

48 29330028221 限位板 Anchor plate Y 1

49 4011000082 螺栓GB5783-M10*25EpZn-8.8 Bolt Y 2

50 29330039162 上罩总成 Cover N 1

51 4015000186 垫圈GB96.1-12EpZn-300HV Washer Y 4

52 29330028481 拉杆 Pull rod Y 1

53 29360015191 后标志 Emblem Y 1

54 29330031081 橡胶套D50 Rubber sleeve Y 2

55 29330064241 走线胶套 Rubber sleeve Y 2

56 4190001839 扎丝LG13-ZS4*160 Cable tie Y 2

57 29330000241 转板 Attaching plate Y 2

58 4016000114 销GB91-2*16EpZn-Q235A Split pin Y 16

59 4016000119 销GB91-3.2*16EpZn-Q235A Split pin Y 2

60 4015000207 垫圈GB97.1-6EpZn-300HV Washer Y 16

61 4043003178 卡子胶条LGB320-U800 Sealing strip Y 2

62 29330028511 后扶手 Hand rail Y 2

63 4011000102 螺栓GB5783-M8*16EpZn-8.8 Bolt Y 2

64 4015000256 垫圈GB96.1-8EpZn-300HV Washer Y 2

65 29330009752 橡胶塞 Rubber plug Y 1

66 29330028531 限位柱 Retainer Y 2

67 29330023161 垫圈16 Washer Y 4

68 4013000016 螺母GB6170-M16EpZn-8 Nut Y 4

69 29330028541 过渡板 Adjusting plate Y 1

70 29330025751 卡锁 Lock Y 1

71 4011000089 螺栓GB5783-M12*30EpZn-8.8 Bolt Y 2
