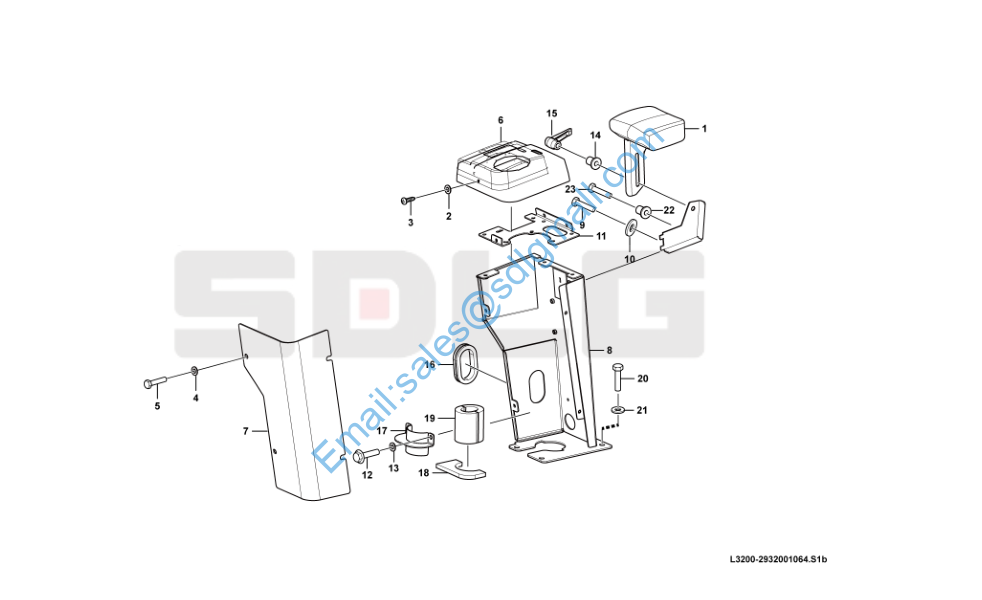

L978F Control housing assembly L3200-2932001064

1 29320009841 扶手总成 Arm rest N 1

2 4015000437 垫圈GB96.1-6flZnyc-300HV-480 Washer Y 1

3 4014000518 螺钉GB818-M6*20flZnyc-4.8-480 Screw Y 3

4 4015000425 垫圈GB96.1-8flZnyc-300HV-480 Washer Y 4

5 4011001246 螺栓GB5783-M8*16flZnyc-8.8-480 Screw Y 4

6 29320009891 上盖 Cover Y 1

7 29320011301 操纵箱焊接总成 Frame Y 1

8 29320011321 外板 Plate Y 1

9 4011001285 螺栓GB5783-M6*16flZnyc-8.8-480 Screw Y 3

10 4015000424 垫圈GB97.1-6flZnyc-300HV-480 Washer Y 3

11 29320009821 顶板总成 Plate Y 1

12 4011001301 螺栓GB16674.1-M8*30flZnyc-8.8-480 Screw Y 2

13 4015000430 垫圈GB97.1-8flZnyc-300HV-480 Washer Y 10

14 29320009921 锁紧套 Lock washer Y 1

15 4019000080 手柄JB7270.12-M10*80 Control handle Y 1

16 26240004831 橡胶套 Rubber sleeve Y 1

17 29320010171 管夹 Clamp Y 1

18 29320010151 海绵 Sponge Y 1

19 29320010141 海绵 Sponge Y 2

20 4011001280 螺栓GB5783-M10*40flZnyc-8.8-480 Screw Y 4

21 4043002603 防松套LGB331-10*20*16flZnyc-45 Attaching sleeve Y 4

22 29320010301 限位块 Block Y 1

23 4011001397 螺栓GB5783-M8*25flZnyc-8.8-480 Screw Y 1
