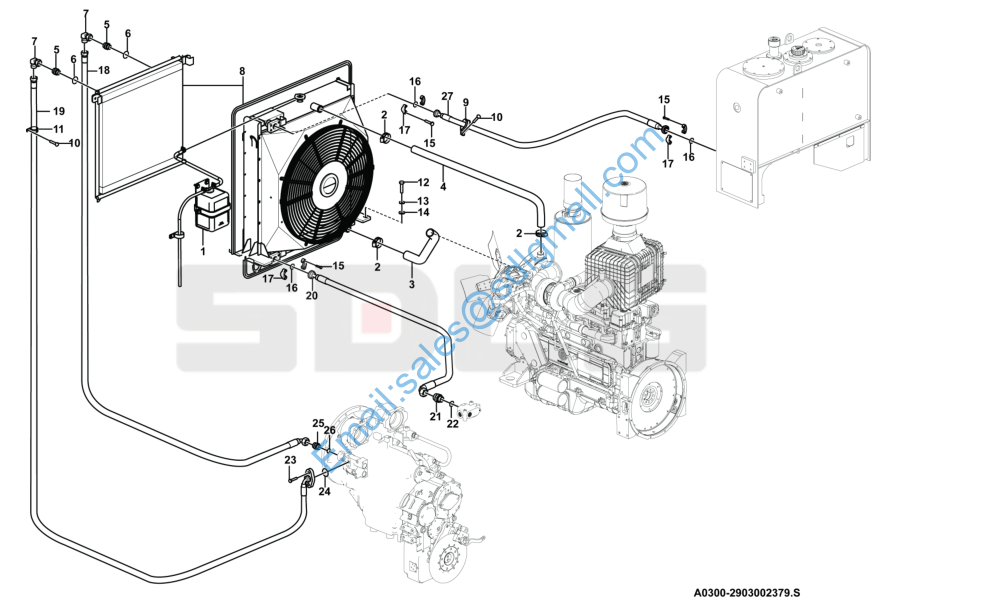

LG968N 散热器总成 Cooling system A0300-2903002379

1 29030021751 膨胀水箱总成 Expansion tank N 1

2 4017000007 喉箍JB8870-d60 Clamp Y 4

3 29010039791 发动机进水管 Hose Y 1

4 29010039801 发动机出水管 Hose Y 1

5 4041001486 直接头LGB155-03036 Nipple Y 2

6 4030000211 O形圈GB3452.1-30.0*2.65G O-ring Y 2

7 4041001211 组合接头LGB143-03625 Nipple Y 2

8 4110002286 散热器总成LG968N-2A Radiator Y 1

9 29030000041 管夹 Clamp Y 4

10 4011000458 螺栓GB16674-M8*20EpZn-8.8 Bolt Y 6

11 29030010811 管夹 Clamp Y 2

12 4011000284 螺栓GB5783-M12*60EpZn-8.8 Screw Y 4

13 4015000026 垫圈GB93-12-65Mn Spring washer Y 4

14 29330023151 垫圈12 Washer Y 4

15 4011000477 螺栓GB16674-M12*35EpZn-8.8 Bolt Y 12

16 4030000130 O形圈GB3452.1-47.5*3.55G O-ring Y 3

17 4041000011 分体法兰LGB117-314650 Flange half Y 3

18 29030023811 传动油散回油管 Hose assembly Y 1

19 29030023801 传动油散进油管 Hose assembly Y 1

20 29030015131 液压油散进油管 Hose assembly Y 1

21 29030017471 直接头1 5/8UN-M36 Nipple Y 1

22 4120005166 O形圈37.47*3.00 O-ring Y 1

23 4014000132 螺钉GB70.1-M10*25EpZn-8.8 Screw Y 2

24 4030000755 O形圈GB3452.1-24.3*1.80G O-ring Y 1

25 29030010801 直接头 Nipple Y 1

26 4030000756 O形圈GB3452.1-23*2.65G O-ring Y 1

27 29030016391 液压油散回油管 Hose assembly Y 1
