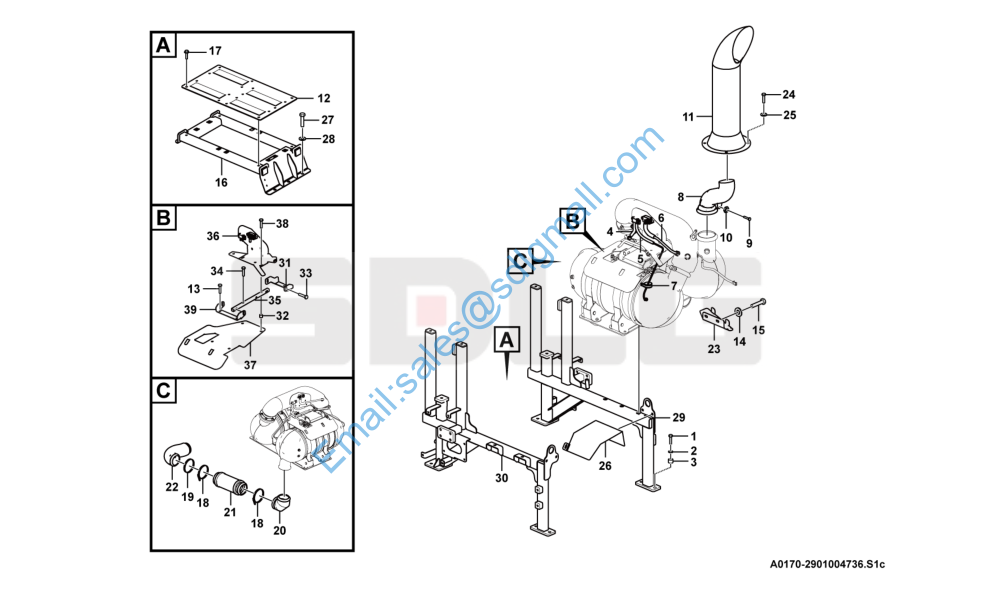

L959F 尾气处理系统 Assembly compound A0170-2901004736

1 4011001327 螺栓GB5782-M12*60flZnyc-10.9-480 Screw Y 8

2 4015000428 垫圈GB97.1-12flZnyc-300HV-480 Washer Y 8

3 29030026851 隔套 Spacer sleeve Y 8

4 11220418 传感器单元 Sensor Y 1

5 11220419 传感器单元 Sensor Y 1

6 11220420 传感器单元 Sensor Y 1

7 29010052371 管夹 Clamp Y 1

8 11220421 排气管 Exhaust pipe Y 1

9 4011001297 螺栓GB16674.1-M8*16flZnyc-8.8-480 Screw Y 1

10 4013000373 螺母GB6170-M8flZnyc-8-480 Nut Y 12

11 4110001754 排气尾管 Pipe Y 1

12 29010048111 安装板 Plate N 1

13 4011001247 螺栓GB5783-M8*20flZnyc-8.8-480 Screw Y 4

14 4015000425 垫圈GB96.1-8flZnyc-300HV-480 Washer Y 25

15 4011001246 螺栓GB5783-M8*16flZnyc-8.8-480 Screw Y 5

16 29010047591 SCR安装板 Bracket Y 1

17 4011001403 螺栓GB16674.1-M8*25flZnyc-10.9-480 Bolt N 17

18 11220422 V型抱箍 V-band clamp Y 3

19 11220423 衬垫 Gasket Y 3

20 11220424 排气钢管 Exhaust pipe Y 1

21 11220425 排气软管 Exhaust hose Y 1

22 11220426 排气钢管 Exhaust pipe Y 1

23 29010049401 走线板 Plate Y 1

24 4011001248 螺栓GB5783-M10*25flZnyc-8.8-480 Screw Y 4

25 4015000433 垫圈GB97.1-10flZnyc-300HV-480 Washer Y 4

26 29010047611 防护板 Plate Y 1

27 4011001404 螺栓GB5783-M10*25flZnyc-10.9-480 Bolt Y 5

28 4015000426 垫圈GB96.1-10flZnyc-300HV-480 Washer Y 5

29 29010047621 右支撑 Bracket Y 1

30 29010047631 左支撑 Bracket Y 1

31 29010047641 SCR支架板 Bracket Y 1
32 29010047691 隔套 Spacer bushing Y 2
33 4011001405 螺栓GB5783-M840flZnyc-8.8-480 Screw Y 6

34 4011001406 螺栓GB5783-M850flZnyc-8.8-480 Screw Y 2
35 29010047671 方管 Square tube Y 2
36 29010047681 走线板 Bracket Y 1
37 29010047661 隔板 Bracket Y 1
38 4011001396 螺栓GB5783-M8*35flZnyc-8.8-480 Screw Y 2
39 29010047651 DPF支架板 Bracket Y 1
