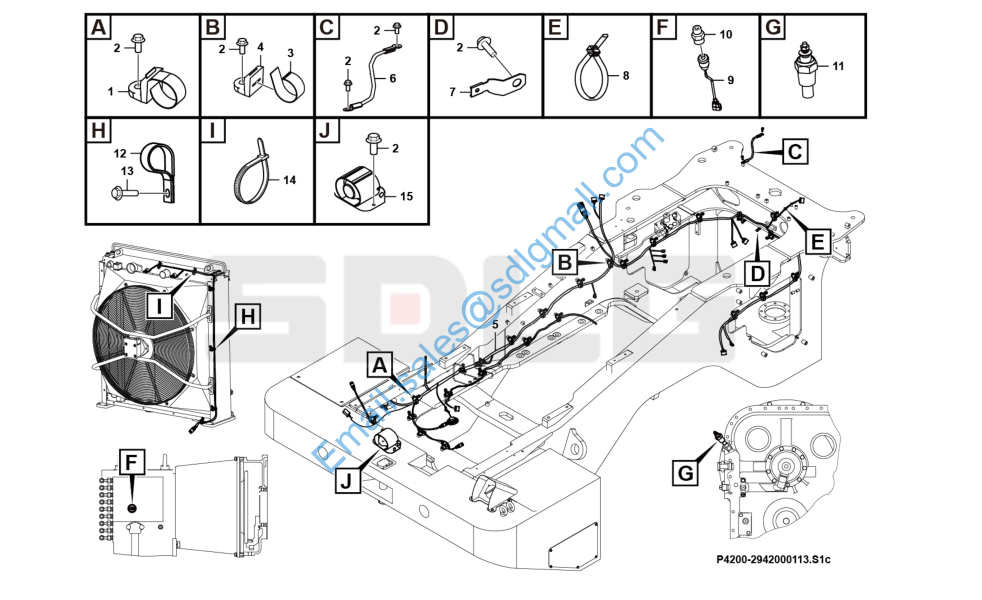

L959F 后车架电气系统 Rear frame electric assembly P4200-2942000113

1 4110002409192 带夹 Strip clamp N 27

2 4011001297 螺栓GB16674.1-M8*16flZnyc-8.8-480 Screw Y 42

3 4110002409034 带夹 Strip clamp N 6

4 4110002409249 带夹 Strip clamp N 6

5 29420001142 后车架线束 Cable harness Y 1

6 29370025681 接地线P15*350 Ground cable Y 1

7 4130001006 CLIP 1027-003-1200 Clip Y 2

8 4190001839 扎丝LG13-ZS4*160 Cable tie Y 10

9 4130001300 压力开关YK215B1 Pressure switch Y 1

10 29010008841 压力传感器接头 Nipple Y 1

11 4130000202 温度传感器WDG1371 Temperature sensor Y 1

12 26370001911 管夹 Clamp N 3

13 4011001302 螺栓GB16674.1-M10*16flZnyc-8.8-480 Screw Y 3

14 4190001095 扎丝N90666101 Cable tie Y 4

15 4130000121 倒车蜂鸣器KSHM-12F4 Buzzer Y 1
