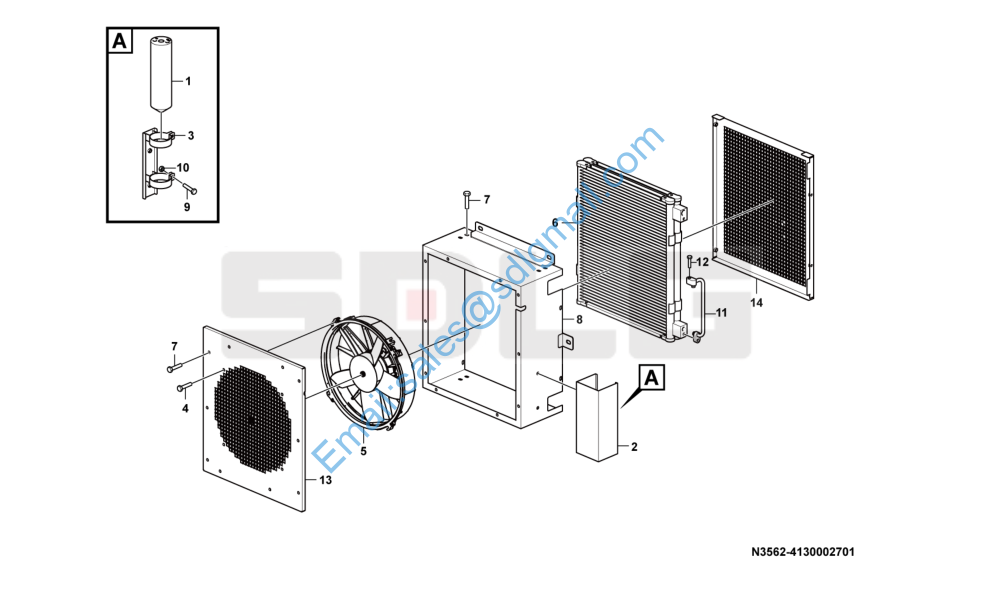

L959F 冷凝器总成(330112) Condense N3562-4130002701

1 4190002863 储液器 Reservoir Y 1

2 4130002453001 储液器保护架GKL33-5.0H1-20 Bracket Y 1

3 4190002907006 储液器卡箍GKL33-5.0H1-30 Clamp Y 1

4 4130002701001 螺栓组合件GB9074.17-88-M6*25DCR Screw Y 5

5 4130002679001 冷凝风机GKL33-5.0H-60 Fan Y 1

6 4130002453002 冷凝器GKL33-5.0H1-40 Condenser Y 1

7 4130002701002 螺栓组合件GB9074.17-88-M6*12DCR Screw Y 27

8 4130002453003 冷凝器壳体GKL33-5.0H5-20 Housing Y 1

9 4130002701003 螺栓组合件GB9074.17-88-M6*20DCR Screw Y 2

10 4013000451 螺母GB889.1-M6flZnyc-8-480 Nut N 2

11 4130002453004 连接管组件GKL33-5.0H1-60 Pipe Y 1

12 4130002701004 螺栓组合件GB9074.17-88-M6*30DCR Screw Y 1

13 4130002453005 出风板GKL33-5.0H5-01 Plate Y 1

14 4130002453006 进风罩组件GKL33-5.0H1-70 Return strainer Y 1
