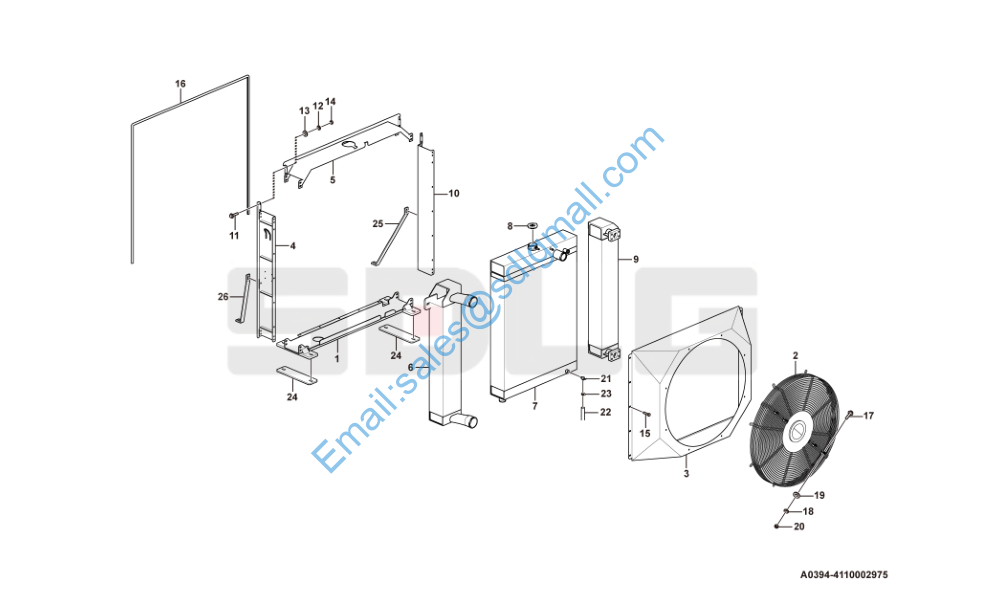

L952D 散热器总成LG955N-2（320204） Radiator A0394-4110002975

1 4110002975201 下钢架KB0476 Radiator frame N 1

2 4110002975202 防护网HB0242 Fan guard Y 1

3 4110002975203 导风罩DB0485 Fan shroud Y 1

4 4110002975204 左钢架KB0477 Radiator frame N 1

5 4110002975205 上钢架KB0492 Radiator frame N 1

6 4110002975206 中冷器S9112715A Air cooler Y 1

7 4110002975207 水散S9112699B Radiator Y 1

8 4110002945006 水箱盖711001 Cover Y 1

9 4110002975208 液压油散热器S9112715C Oil cooler Y 1

10 4110002975209 右钢架KB0478 Radiator frame N 1

11 4110002975210 六角头螺栓610102 Screw N 4

12 4110002975211 弹垫632200 Washer N 4

13 4110002975212 平垫630230 Washer N 8

14 4110002975213 螺母621100 Nut N 4

15 4110002945015 法兰面螺栓614212 Screw N 36

16 4110002975214 U型卡条8290023380 Sealing strip N 1

17 4110002975215 六角头螺栓610202 Screw N 4

18 4110002943004 弹垫632300 Spring washer N 4

19 4110001688022 平垫630330 Plain washer N 8

20 4110002945016 六角螺母621200 Nut N 4

21 4110002945007 放水阀739001 Valve Y 1

22 4110002506023 放水管8000080800 Hose Y 1

23 4110002286007 卡箍990002 Clamp N 1

24 4110002975216 减震垫720043 Damper mat N 4

25 4110002975217 支撑杆A330514 Bracket N 1

26 4110002975218 支撑杆B330513 Bracket N 1
