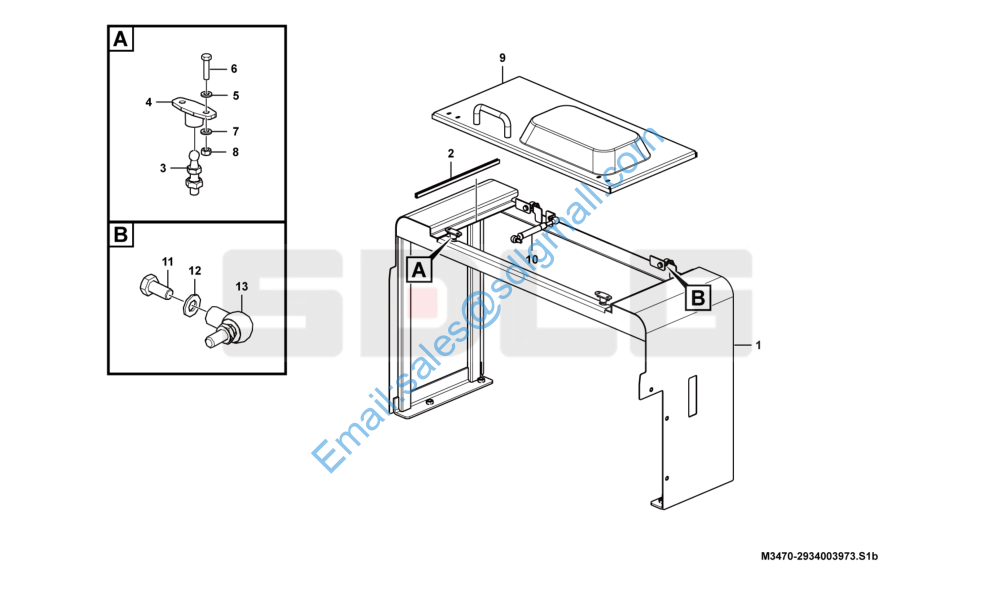

L948F 液压油箱罩 Cover M3470-2934003973

1 29340039741 液压油箱罩壳 Cover Y 1

2 4043001353 卡子胶条LGB320-U350 Sealing strip Y 2

3 29340037021 球头螺栓 Ball stud Y 2

4 29340036401 橡胶座 Rubber frame Y 2

5 4015000437 垫圈GB96.1-6flZnyc-300HV-480 Washer Y 4

6 4011001285 螺栓GB5783-M6*16flZnyc-8.8-480 Screw Y 4

7 4015000424 垫圈GB97.1-6flZnyc-300HV-480 Washer Y 4

8 4013000372 螺母GB6170-M6flZnyc-8-480 Nut Y 4

9 29340039871 上盖 Cover Y 1

10 4190000342 气弹簧JB8064.1-YQ8/18-50-200（B- Spring Y 1

11 4011001246 螺栓GB5783-M8*16flZnyc-8.8-480 Screw Y 2

12 4015000430 垫圈GB97.1-8flZnyc-300HV-480 Washer Y 2

13 29340037011 球头总成 Ball joint Y 2
