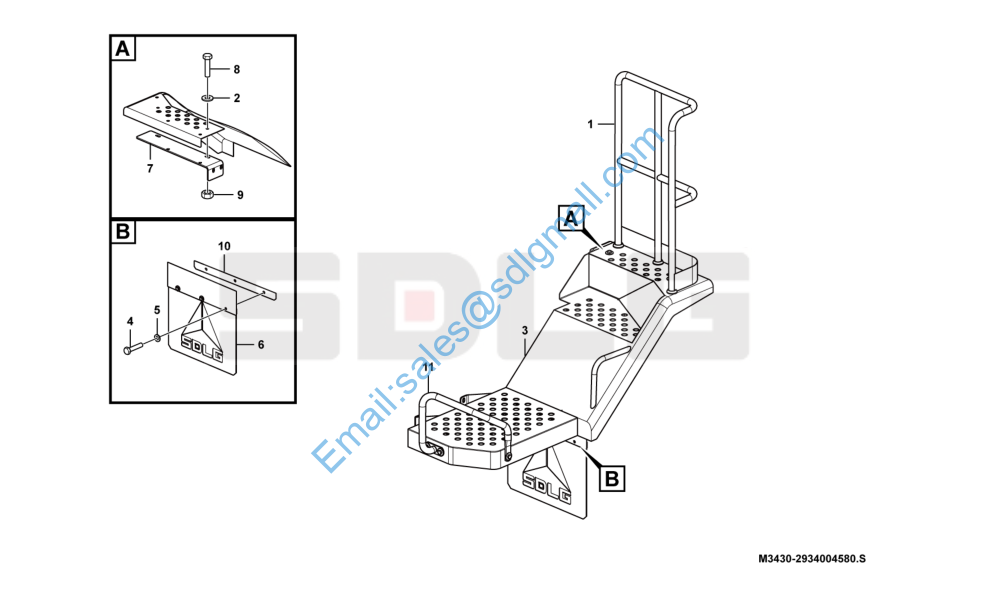

L948F 左台架总成 Platform M3430-2934004580

1 29340032811 左护栏 Hand rail Y 1
2 4015000427 垫圈GB96.1-12flZnyc-300HV-480 Washer Y 8
3 29340045811 左台架 Platform Y 1
4 4011001248 螺栓GB5783-M1025flZnyc-8.8-480 Screw Y 3 5 4015000426 垫圈GB96.1-10flZnyc-300HV-480 Washer Y 3 6 29340030511 橡胶板 Mudflap Y 1 7 29340042981 左支撑架 Bracket Y 1 8 4011001250 螺栓GB5783-M1230flZnyc-8.8-480 Screw Y 8
9 4013000368 螺母GB6170-M12flZnyc-8-480 Nut Y 5
10 29340030501 压板 Plate Y 1
11 29340042111 左前扶手 Hand rail Y 1
