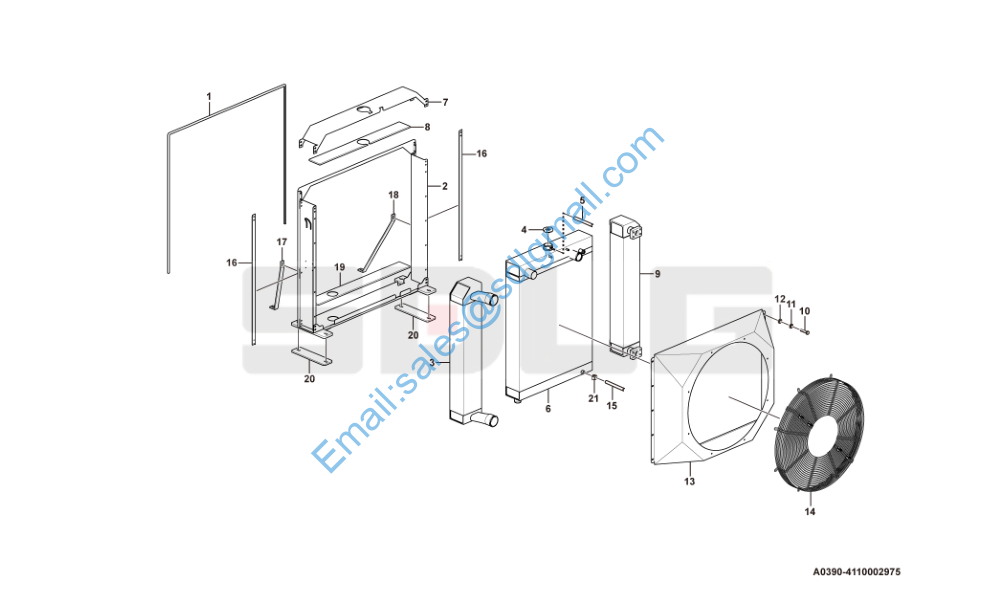

L953 散热器总成LG955N-2（321002） Radiator A0390-4110002975

1 4110002466017 密封条LY-LG953L-2H（AL）-00-004 Sealing collar Y 1

2 4110002975001 框架焊接部件LY-LG955N(III)-2-37-020 Radiator frame N 1

3 4110002975002 中冷器LY-LG955N(III)-2-35-000 Air cooler N 1

4 4110001929 Ⅱ型90Kpa复式加水口盖FG2 Cap Y 1

5 4110002370103 泄气软管(L=1500)QG2 Hose N 1

6 4110002975003 水散热器LY-LG955N(III)-2-37-010 Radiator N 1

7 4110002975004 盖板部件LY-LG955N(III)-2-37-030 Plate N 1

8 4110002975005 上减震垫LY-LG955N(III)-2-00-004 Damper mat N 1

9 4110002975006 液压油散热器LY-LG955N(III)-2-36-000 Oil cooler N 1

10 4011000723 螺栓GB5783-M8*20-8.8 Bolt Y 42

11 4120002278009 垫圈GB93-8 Washer Y 42

12 4110002157011 垫圈GB97.2-8 Spring washer N 42

13 4110002975007 导风罩LY-LG955N(III)-2-00-001 Fan shroud N 1

14 4110002975008 防护网LY-LG955N(III)-2-00-002 Fan guard N 1

15 4110002165013 橡胶软管(L=800)QG3 Rubber tube N 1

16 4110002975009 挡风条LY-LG955N(III)-2-00-003 Plate N 2

17 4110002975010 左支撑板LY-LG955N(III)-2-00-007 Bracket N 1

18 4110002975011 右支撑板LY-LG955N(III)-2-00-008 Bracket N 1

19 4110002975013 下减震垫LY-LG955N(III)-2-00-005 Damper mat N 1

20 4110002975012 减震垫LY-LG955N(III)-2-00-006 Damper mat N 2

21 4110001182007 管夹GJ5 Clamp N 1
