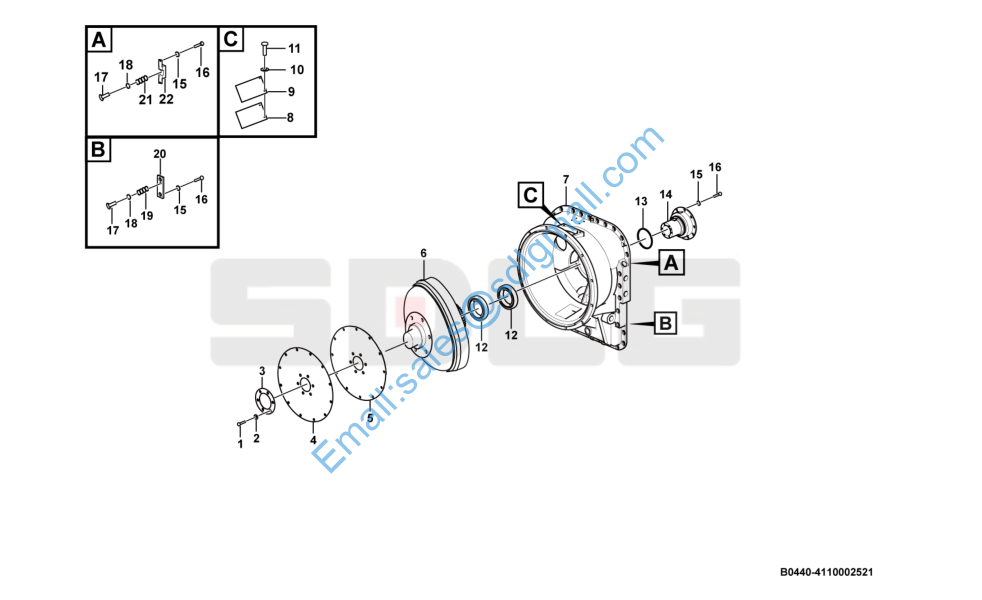

L953 变矩器(610101) Torque converter B0440-4110002521

1 4110002521101 螺栓GB5786-M12*1.5*22EpZn-10.9 Screw N 1

2 4015000026 垫圈GB93-12-65Mn Spring washer Y 1

3 4110000160107 弹性板0-07 Plate N 1

4 4110002521102 弹性板0-06 Plate N 1

5 4110000160106 弹性板总成0-10 Plate N 1

6 4110002521103 液力变矩器YJHSW315E-1-YB-245/0-0 Torque converter N 1

7 4110002521104 壳体0-04 Housing N 1

8 4110000160099 衬垫YB-1/0-012 Gasket N 1

9 4110000160104 观察盖YB-1/0-014 Cover N 1

10 4015000036 垫圈GB93-8-65Mn Spring washer Y 1

11 4011001523 P-螺栓GB5781-M8*16EpZn-4.8 Screw Y 1

12 4021000013 滚动轴承GB276-6016 Ball bearing Y 1

13 4015000242 P挡圈GB893.1-125-65Mn Retaining ring Y 1

14 4110002521105 导轮座YB-8/0-01 Seat N 1

15 4015000025 垫圈GB93-10-65Mn Spring washer Y 1

16 4011000081 螺栓GB5783-M10*20EpZn-8.8 Bolt Y 1

17 4110000160092 阀芯YB-1/0-06 Valve rod N 1

18 4110000160091 调整垫片YB-1/0-05 Shim N 1

19 4110000160094 弹簧ⅡYB-1/0-08 Spring N 1

20 4110000160093 盖板YB-1/0-07 Plate N 1

21 4110000160090 弹簧ⅠYB-1/0-04 Spring N 1

22 4110000160089 阀盖YB-1/0-03 Cover N 1
