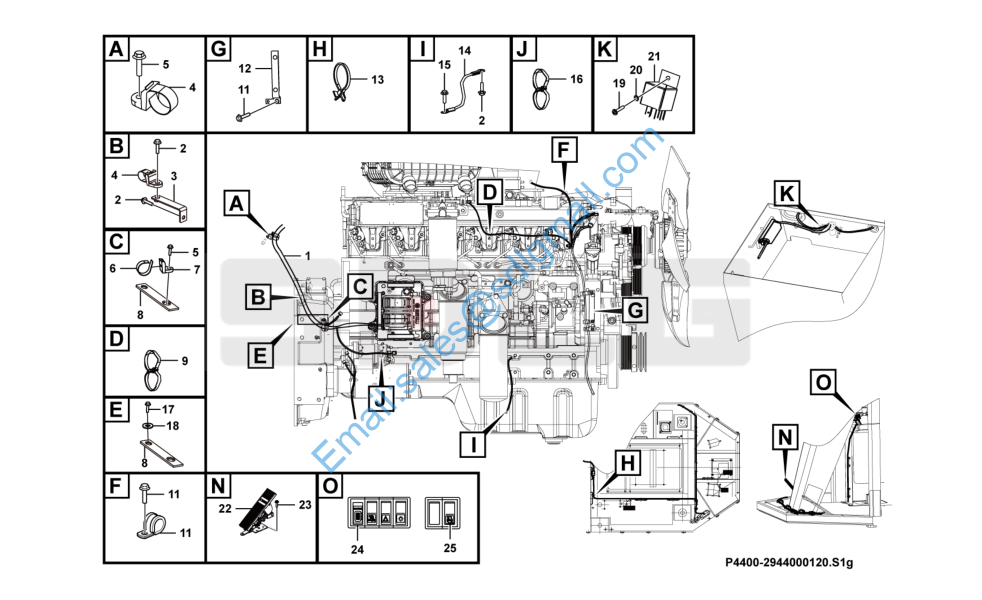

L953 发动机电气总成 Engine electric system P4400-2944000120

1 29440001613 ECU线束 Cable harness Y 1

2 4011000488 螺栓GB16674-M10*16EpZn-8.8 Bolt Y 2

3 26370001172 支架 Bracket Y 1

4 14400342 扎带 Strip clamp Y 4

5 4011000461 螺栓GB16674-M8*16EpZn-8.8 Bolt Y 4

6 14400341 扎带 Strip clamp Y 1

7 14400340 扎带座 Strip clamp Y 1

8 29440000391 支板 Bracket Y 1

9 4190001095 扎丝N90666101 Cable tie Y 2

10 4041002406 管夹LGB169-A12*12.5 Clamp Y 1

11 4011000137 螺栓GB16674-M12*20EpZn-8.8 Bolt Y 3

12 29440000731 支架 Bracket Y 1

13 4190001839 扎丝LG13-ZS4*160 Cable tie Y 14

14 29440000111 接地线P50*500 Battery cable Y 1

15 4011000807 螺栓GB16674-M8*12EpZn-8.8 Bolt Y 1

16 4190001835 扎丝RTGB-370ST Cable tie Y 2

17 4011000664 螺栓GB5783-M14*20EpZn-8.8 Screw Y 1

18 4015000177 垫圈GB97.1-14EpZn-300HV Washer Y 1

19 4011000194 螺钉GB818-M6*12EpZn-4.8 Screw Y 2

20 4015000207 垫圈GB97.1-6EpZn-300HV Washer Y 2

21 4130000869 中间继电器024-1Z6GD2 Relay Y 2

22 4130002745 电子油门踏板403269 Accelerator pedal Y 1

23 4011000458 螺栓GB16674-M8*20EpZn-8.8 Bolt Y 3

24 4130002655 多态开关3735075-BD01 Switch Y 1

25 4130002780 应急提速开关JK931-01YJTS Rocker switch Y 1
