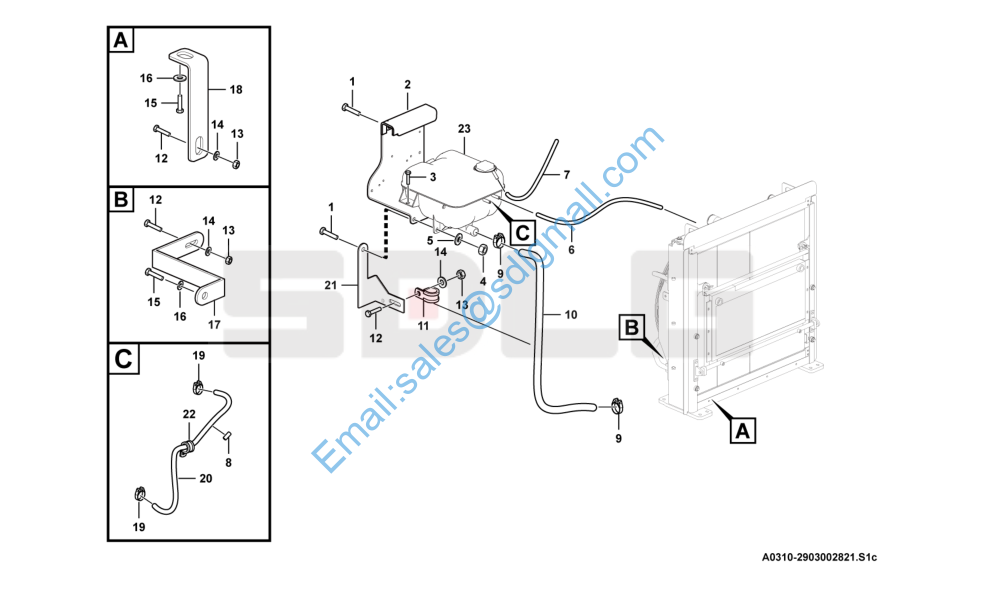

L948F 膨胀水箱总成 Expansion tank A0310-2903002821

1 4011001358 螺栓GB5783-M10*30flZnyc-10.9-480 Screw Y 5

2 29030028241 副水箱支架 Bracket Y 1

3 4011001294 螺栓GB16674.1-M10*20flZnyc-8.8-480 Screw Y 3

4 4013000370 螺母GB6170-M10flZnyc-8-480 Nut Y 2

5 4015000433 垫圈GB97.1-10flZnyc-300HV-480 Washer Y 2

6 4043003369 胶管LGB339-10*500 Hose Y 1

7 29030025321 溢流管 Hose Y 1

8 29030022061 节流器 Nipple Y 1

9 4017000009 喉箍JB8870-d50 Clamp Y 2

10 29030028251 补水管 Hose Y 1

11 29030010811 管夹 Clamp Y 3

12 4011001297 螺栓GB16674.1-M8*16flZnyc-8.8-480 Screw Y 4

13 4013000373 螺母GB6170-M8flZnyc-8-480 Nut Y 3

14 4015000425 垫圈GB96.1-8flZnyc-300HV-480 Washer Y 3

15 4011001268 螺栓GB5783-M10*16flZnyc-8.8-480 Screw Y 2

16 4015000426 垫圈GB96.1-10flZnyc-300HV-480 Washer Y 5

17 29030028261 支架 Bracket Y 1

18 29030028271 支架 Bracket Y 1

19 4017000010 喉箍JB8870-d20 Clamp Y 4

20 4090000366 胶管HG2491-10*1400 Hose Y 1

21 29030028281 支架 Bracket Y 1

22 29010000031 管夹 Clamp Y 3

23 11219198 副水箱 Expansion tank Y 1
