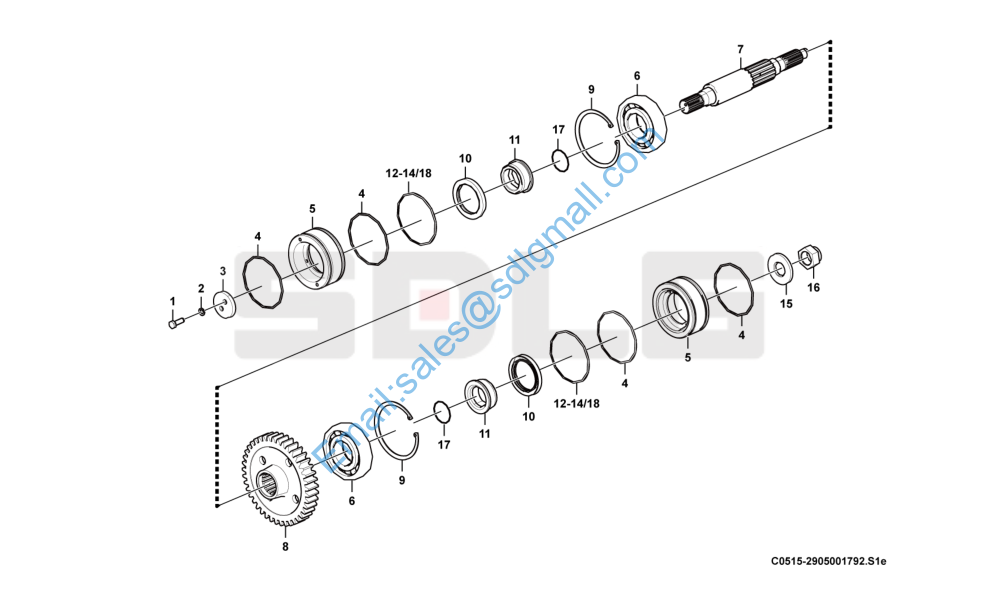

L946 输出轴总成 Output shaft C0515-2905001792

1 4011001358 螺栓GB5783-M10*30flZnyc-10.9-480 Screw Y 2

2 4015000384 防松垫圈NASM1312-7-NL10 Washer Y 2

3 29050011161 垫圈 Washer Y 1

4 4030000536 O形圈GB3452.1-122*3.55G O-ring Y 4

5 29050017481 油封座 Sealing retainer Y 2

6 4021000024 滚动轴承GB276-6312 Ball bearing Y 2

7 29050017461 输出轴 Output shaft Y 1

8 29050016311 输出轴齿轮 Gear Y 1

9 29050016931 挡圈 Retaining ring Y 2

10 4030000768 密封圈GB13871.1-FB070095-F Sealing ring Y 2

11 29050017471 密封套 Sealing sleeve Y 2

12 29050012731 调整垫片 Shim Y 2

13 29050012741 调整垫片 Shim Y 2

14 29050012751 调整垫片 Shim Y 2

15 29070000221 垫圈 Washer Y 1

16 4013000066 螺母GB889.2-M33*1.5-8 Lock nut Y 1

17 29050018381 O型圈 O-ring Y 2

18 29050033991 调整垫片 Shim Y 2
