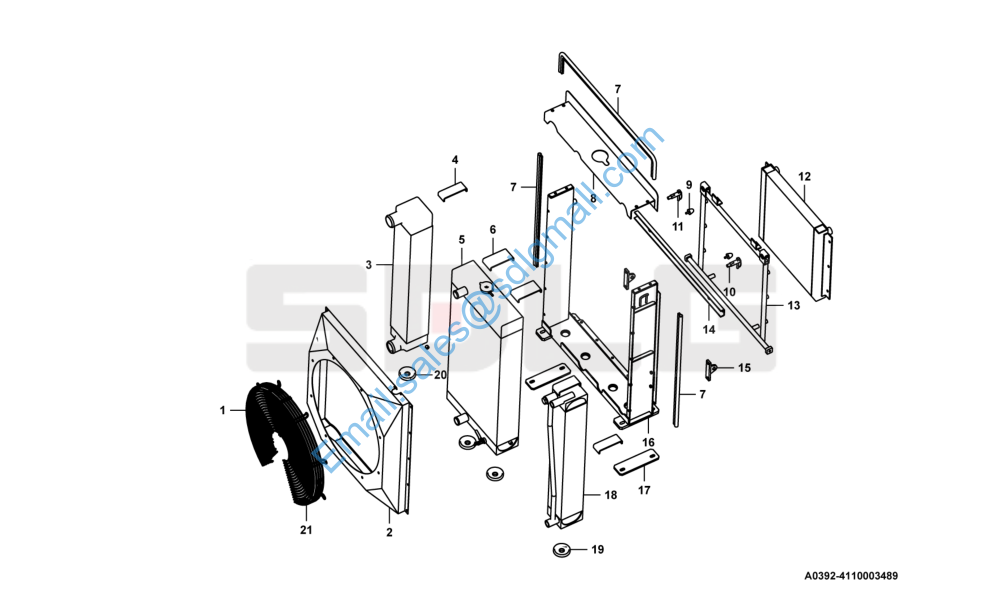

L946 散热器总成L946-2（331008） Radiator A0392-4110003489

1 4110003489001 防护圈6726487-01 Fan guard N 1

2 4110003489002 导风罩6726476-01 Fan shroud N 1

3 4110003489003 中冷器250768-01 Air cooler N 1

4 4110003360012 橡胶板6724845-01 Rubber plate N 2

5 4110003489004 散热器313177-01 Radiator N 1

6 4110003360017 橡胶板6724846-01 Rubber plate N 2

7 4110003489005 密封条6712417-60 Sealing strip N 1

8 4110003489006 安装板组件6726482-01 Plate N 1

9 4110003489007 橡胶垫6726509-01 Rubber plate N 2

10 4110003489008 销轴6726069-01 Pin N 2

11 4110003489009 锁扣6726068-01 Latch N 2

12 4110003489010 风冷封条机油冷却器212133-01 Oil cooler N 1

13 4110003489011 框架组件6726495-01 Radiator frame N 1

14 4110003489012 安装板6726500-01 Plate N 1

15 4110003489013 安装板组件6726517-01 Plate N 2

16 4110003489014 焊接框架组件6726479-01 Radiator frame N 1

17 4110003489015 橡胶板6726494-01 Rubber plate N 2

18 4110003489016 风冷封条机油冷却器212134-01 Oil cooler N 1

19 4110003489017 减震垫6723551-01 Damper mat N 3

20 4110003360026 减震垫6723550-01 Damper mat N 1

21 4110003489018 防护圈6726488-01 Fan guard N 1
