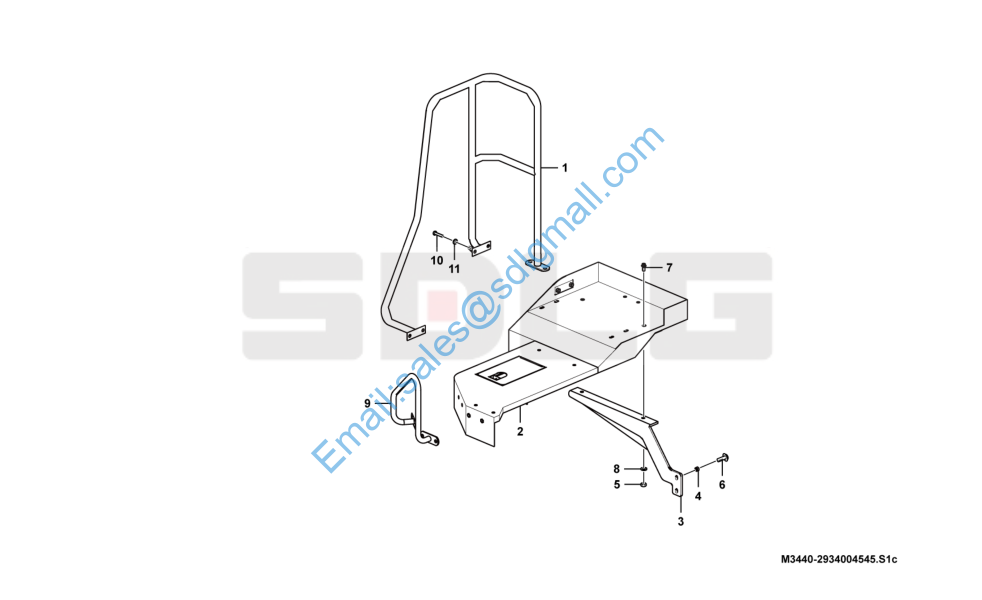

L956 右台架总成 Platform assembiy M3440-2934004545

1 29340045511 右后扶手 Hand rail Y 1
2 29340045701 右台架 Platform Y 1
3 29340045671 右支架 Bracket Y 1
4 4043001970 防松套LGB331-122416flZnyc-45 Attaching sleeve Y 2
5 4013000368 螺母GB6170-M12flZnyc-8-480 Nut Y 2
6 4011001251 螺栓GB5783-M1245flZnyc-8.8-480 Screw Y 2 7 4011001243 螺栓GB5783-M1235flZnyc-8.8-480 Screw Y 6
8 4015000427 垫圈GB96.1-12flZnyc-300HV-480 Washer Y 12
9 29340045491 右前扶手 Hand rail Y 1
10 4011001250 螺栓GB5783-M12*30flZnyc-8.8-480 Screw Y 10
11 4015000428 垫圈GB97.1-12flZnyc-300HV-480 Washer Y 10
