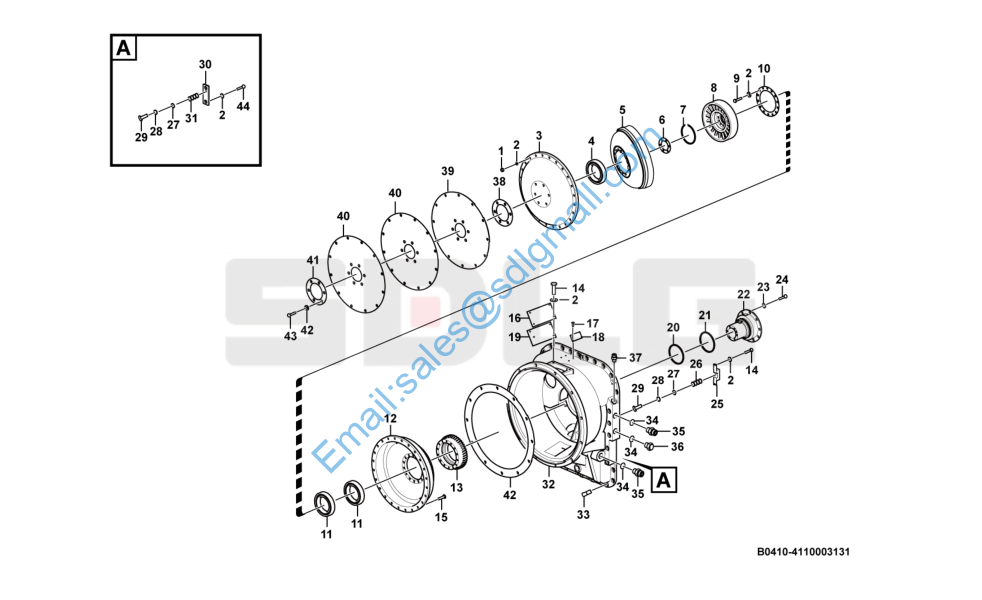

L955FC 变矩器YJSW315-7LG Torque converter B0410-4110003131

1 7200000798 螺母M801580-10806 Nut Y 24

2 4110000084130 垫圈8 01602-20825 Washer Y 46

3 4110000518013 罩轮YJSW315-8A-00001 Wheel Y 1

4 4021000018 滚动轴承GB276-6210 Ball bearing Y 1

5 4110003131001 涡轮组件YJSW315-7A-10000 Turbine N 1

6 4110000011096 调整垫YB315Z5-30/31/32 Washer Y 1

7 4110000518004 挡圈04064-08530 85 Retaining ring Y 1

8 4110003131002 导轮YJSW315-7A-00002 Stator N 1

9 4110002525001 螺栓01010-80835 M8*35 Screw Y 14

10 4110000011094 压紧垫片YB315Z5-22A Washer Y 1

11 4021000076 滚动轴承GB276-6017 Ball bearing Y 2

12 4110003131003 泵轮YJSW315-7A-00001 Impeller N 1

13 4110002522101 齿轮YJSW315-8A-00004L Gear Y 1

14 4110002580017 六角头螺栓M8*20 01010-80820 Screw Y 6

15 4110002522102 螺栓M8*40 01010-80840 Screw Y 24

16 4110000011088 垫板YB315Z5-06D Spacer Y 1

17 7200000846 铆钉3*6 04418-03060 Rivet Y 4

18 4110003131004 铭牌YJSW315-7A-BP Name plate N 1

19 4110000011089 胶垫YB315Z5-07D Gasket Y 1

20 4110000011083 密封环YB315Z5-12A Sealing ring Y 1

21 4110000011082 密封环YB315Z5-33 Sealing ring Y 1

22 4110002525005 导轮座YB315Z5-13D Seat Y 1

23 4110000004001 弹性垫圈01602-21030 Retaining ring Y 9

24 4011001094 螺栓GB21-M10*25-10.9 Screw Y 9

25 4110000011100 阀盖YB315Z5-17A Bracket Y 1

26 4110000011101 弹簧YB315Z5-18A Spring Y 1

27 4110000011107 调压垫YB315Z5-28.29 Washer Y 2

28 4110000011102 调压垫YB315Z5-16.21 Washer Y 2

29 4110000011103 阀杆YB315Z5-26A Valve rod Y 2

30 4110000011105 压板YB315Z5-19A Anchor plate Y 1

31 4110000011106 弹簧YB315Z5-20 Spring Y 1
32 4110002524001 壳体YB315Z5-08D-04 Housing Y 1
33 4110000011129 管接头YB315Z5-24K Nipple Y 1
34 4110000011128 垫圈30 YB315Z5-09组合密封垫圈 Washer N 3
35 4110000011098 管接头YB315Z5-14S Nipple Y 2
36 4110000011104 螺塞YB315Z5-15L① Plug Y 1
37 4110000359052 接头1YB315Z5-10L Nipple Y 1
38 4110000011113 调整垫YB315Z5-34 Washer N 1
39 4110000011114 弹性板总成YJSW315-20000 Plate Y 1
40 4110000011115 弹性板YJSW315-20001 Plate Y 2
41 4110000011116 圆垫板YB315Z5-04 Shim Y 1
42 4110000160054 垫圈01602-21236 Gasket Y 6
43 4110000960004 螺栓01010-81230 Screw Y 6
44 4110002525003 螺栓01010-80816 M8*16 Screw Y 2
