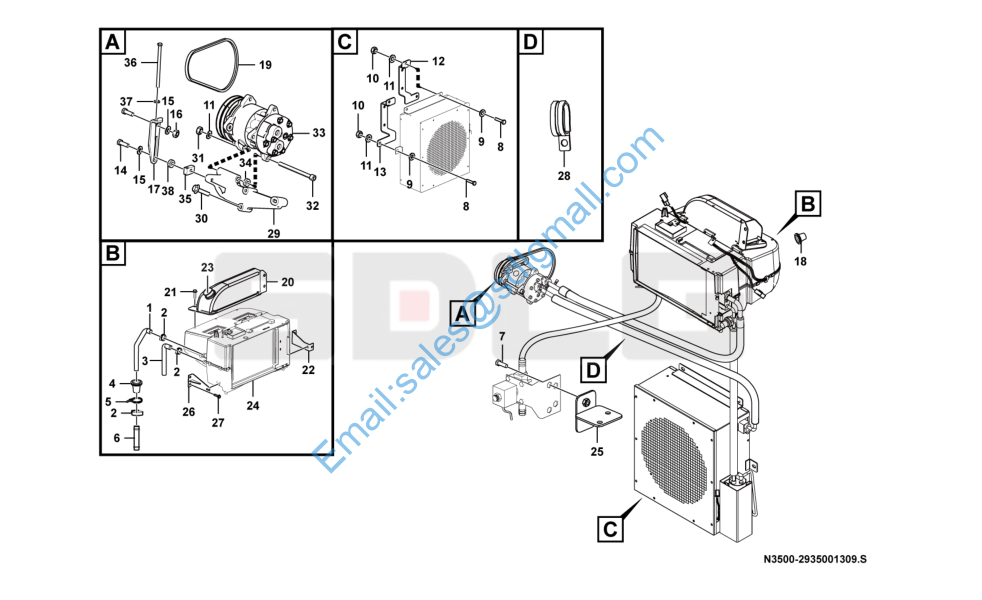

L938F 空调 Air conditioning N3500-2935001309

1 29350010211 出水管 Water pipe Y 1

2 4017000024 环箍QC390-D26 Clamp Y 4

3 29350012091 进水管 Water pipe Y 1

4 29310000091 橡胶套 Rubber sleeve Y 2

5 4190000019 扎丝LG13-ZS3*150 Cable tie Y 4

6 29350010291 过渡管 Copper tube Y 1

7 4011001238 螺栓GB5783-M10*20flZnyc-8.8-480 Screw Y 2

8 4011001248 螺栓GB5783-M10*25flZnyc-8.8-480 Screw Y 8

9 4015000426 垫圈GB96.1-10flZnyc-300HV-480 Washer Y 10

10 4013000370 螺母GB6170-M10flZnyc-8-480 Nut Y 6

11 4015000433 垫圈GB97.1-10flZnyc-300HV-480 Washer Y 4

12 29350010371 右支架 Bracket Y 1

13 29350010381 左支架 Bracket Y 1

14 4011001341 螺栓GB5783-M8*40flZnyc-10.9-480 Screw Y 2

15 4015000430 垫圈GB97.1-8flZnyc-300HV-480 Washer Y 7

16 4013000384 螺母GB889.1-M8flZnyc-8-480 Nut Y 1

17 29350011041 支架 Bracket Y 1

18 28250005602 走线胶套 Rubber cover Y 1

19 4110000347 压缩机皮带A17-410 Belt Y 1

20 29350010601 空调接口风道 Air duct Y 1

21 4011001343 螺栓GB16674.1-M6*12flZnyc-8.8-480 Screw Y 3

22 29350010241 支架 Bracket Y 1

23 29350010611 空调出风口 Air duct Y 1

24 29350013102 L948（CE）空调系统 Air conditioning system Y 1

25 29350012121 支架 Bracket Y 1

26 29350012571 支架 Bracket Y 1

27 4011001296 螺栓GB16674.1-M8*20flZnyc-8.8-480 Screw Y 13

28 26370001981 管夹 Clamp Y 3

29 29350011821 压缩机支架 Bracket Y 1

30 4011001340 螺栓GB16674.1-M8*50flZnyc-10.9-480 Screw Y 3

31 4013000394 螺母GB889.1-M10flZnyc-8-480 Nut Y 1

32 4014000536 螺钉GB70.1-M10*130flZnyc-10.9-480 Screw Y 1

33 3215082742 压缩机 Compressor N 1

34 29350011061 垫片 Shim Y 1

35 29350011051 固定块 Block Y 1

36 4011001342 螺栓GB5783-M8*130flZnyc-10.9-480 Screw Y 1

37 4015000440 垫圈GB849-8flZnyc-480 Washer Y 1

38 29350011121 垫片 Shim Y 2
