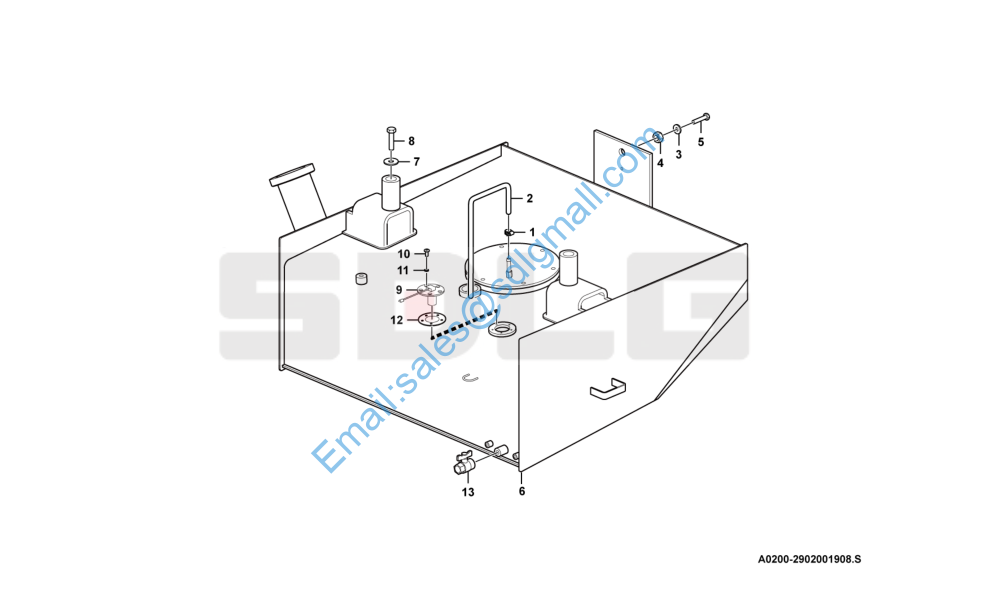

L938F 燃油箱总成 Fuel tank A0200-2902001908

1 4017000015 喉箍JB8870-d25 Clamp Y 1

2 4030000427 胶管JB8406-B10*1000 Hose Y 1

3 4015000434 垫圈GB97.1-20flZnyc-300HV-480 Washer Y 1

4 4013000404 螺母GB6171-M20*2flZnyc-8-480 Nut Y 1

5 4011001421 螺栓GB5785-M20*2*60flZnyc-8.8-480 Bolt Y 1

6 29020019071 燃油箱总成 Fuel tank N 1

7 4015000472 垫圈GB96.1-24flZnyc-300HV-480 Washer Y 2

8 4011001416 螺栓GB5785-M24*2*150flZnyc-8.8-480 Bolt Y 2

9 4130002214 油量传感器RG2266型-M86 Fuel level sensor Y 1

10 4014000535 螺钉GB818-M5*12flZnyc-4.8-480 Screw Y 5

11 4015000424 垫圈GB97.1-6flZnyc-300HV-480 Washer Y 5

12 29020006851 垫片 Spacer Y 1

13 4120000099 球阀MBS216-1/2″ Valve Y 1
