L938F 后车架 Rear frame K2600-2926003385

1 29260033853 后车架 Rear frame Y 1

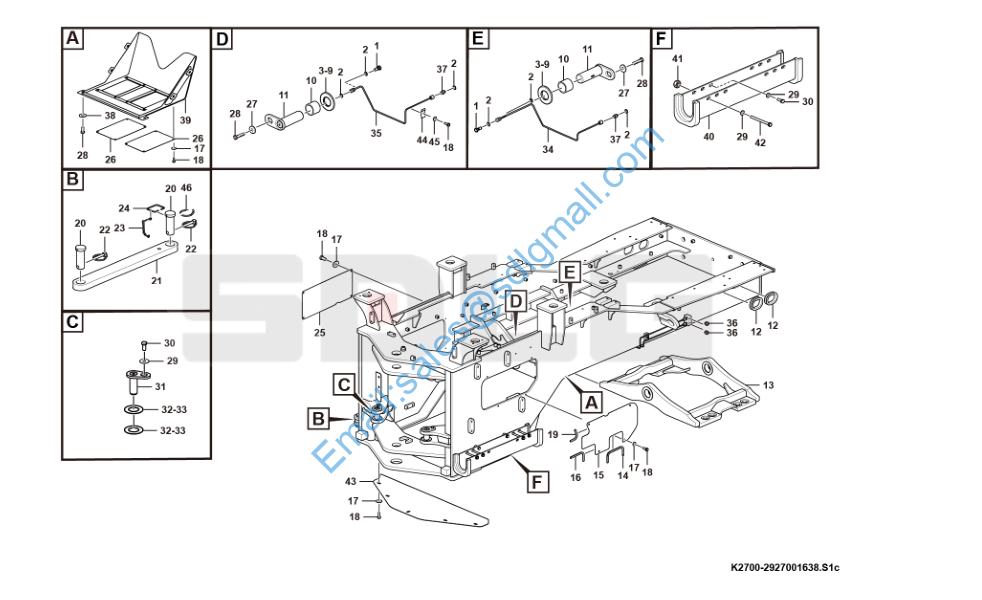

后车架附件 Rear frame and accessories K2700-2927001638

1 29250000291 通油螺栓 Bolt Y 2

2 29250000301 垫片 Shim Y 6

3 29270009321 调整垫片 Shim Y 2

4 29270009311 调整垫片 Shim Y 2

5 29270001071 调整垫片 Shim Y 2

6 29270001061 调整垫片 Shim Y 2

7 29270001051 调整垫片 Shim Y 2

8 29270009301 调整垫片 Shim Y 2

9 29270009331 调整垫片 Shim Y 2

10 29270007831 套 Bushing Y 2

11 29270016001 焊接销轴 Pin Y 2

12 29270009101 走线胶套 Rubber sleeve Y 4

13 29270007841 副车架 Rear axle bridge Y 1

14 4043001018 卡子胶条LGB320-U260 Sealing strip Y 1

15 29270016271 左盖板 Plate Y 1

16 4043001044 卡子胶条LGB320-U180 Sealing strip Y 1

17 4015000425 垫圈GB96.1-8flZnyc-300HV-480 Washer Y 21

18 4011001247 螺栓GB5783-M8*20flZnyc-8.8-480 Screw Y 22

19 4043001043 卡子胶条LGB320-U110 Sealing strip Y 1

20 29270013881 锁定销轴 Pin Y 2

21 29270013891 锁定杆 Lock lever Y 1

22 29270000081 卡环 Lock ring Y 2

23 29250020601 链条 Chain Y 1

24 29280010021 挂钩 Tensioning hook Y 1

25 29270016261 右盖板 Plate Y 1

26 29270017221 盖板 Plate Y 2

27 4040000050 垫圈LGB001-12flZnyc-480 Washer Y 2

28 4011001239 螺栓GB5783-M12*20flZnyc-8.8-480 Bolt Y 8

29 4015000428 垫圈GB97.1-12flZnyc-300HV-480 Washer Y 12

30 4011001250 螺栓GB5783-M12*30flZnyc-8.8-480 Screw Y 4

31 29270018131 后转向销轴 Pin Y 2

32 4043000064 垫片LGB303-40*70*1 Shim Y 4

33 4043000325 垫片LGB303-40*70*2 Shim Y 4

34 29270018101 后输油管 Lubricating pipe Y 1

35 29270017321 前输油管 Lubricating pipe Y 1

36 4030000065 油杯JB7940.1-M10*1 Lubricating nipple Y 4

37 29250014121 接头 Nipple Y 2

38 4015000427 垫圈GB96.1-12flZnyc-300HV-480 Washer Y 6

39 29270017232 后护板 Protecting plate Y 1

40 29270016391 支撑板 Bracket Y 1

41 4013000368 螺母GB6170-M12flZnyc-8-480 Nut Y 4

42 4011001335 螺栓GB5782-M12*130flZnyc-8.8-480 Screw Y 4

43 29270016281 护板 Protecting plate Y 1

44 29270021761 压板 Plate Y 1

45 4015000430 垫圈GB97.1-8flZnyc-300HV-480 Washer Y 1

46 29250020611 链条环 Ring Y 2
