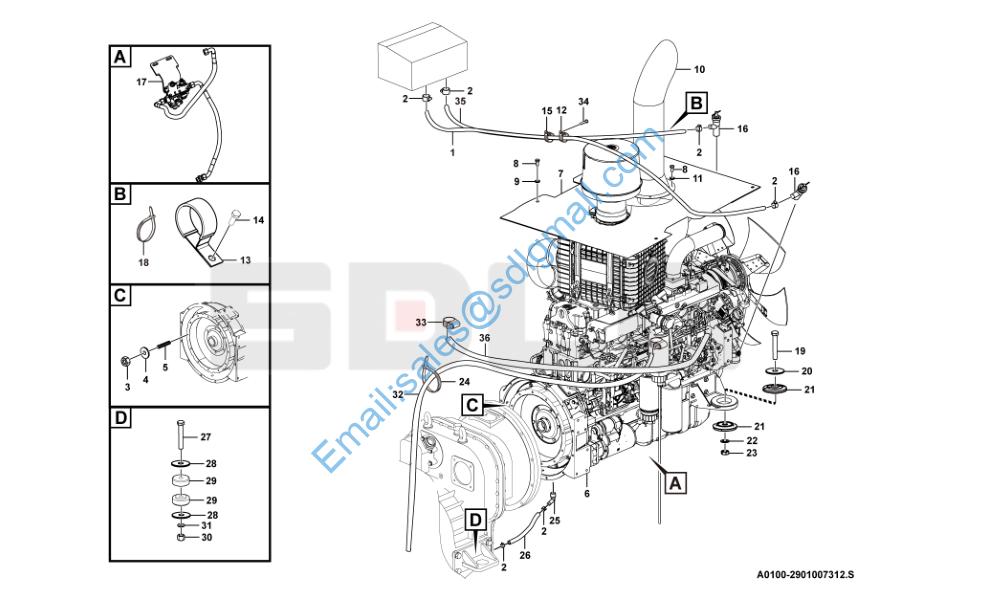

L956 发动机总成 Engine A0100-2901007312

1 4090000176 胶管HG2491-16*2900 Hose Y 1

2 4017000024 环箍QC390-D26 Clamp Y 6

3 4013000007 螺母GB6170-M10EpZn-8 Nut Y 12

4 4015000025 垫圈GB93-10-65Mn Spring washer Y 12

5 29010016661 双头螺柱 Stud Y 12

6 4110003746 发动机总成 Engine Y 1

7 29010060161 上盖板 Cover plate Y 1

8 4011001238 螺栓GB5783-M10*20flZnyc-8.8-480 Screw Y 10

9 4015000426 垫圈GB96.1-10flZnyc-300HV-480 Washer Y 6

10 4110001754 排气尾管 Pipe Y 1

11 4015000433 垫圈GB97.1-10flZnyc-300HV-480 Washer Y 4

12 29030010811 管夹 Clamp Y 1

13 4041002384 管夹LGB169-A25*12.5 Clamp Y 3

14 4011000137 螺栓GB16674-M12*20EpZn-8.8 Bolt Y 1

15 4120000067 暖风机水阀LG12-NFJSF Valve Y 2

16 29220025911 油水分离器模块 Water separator N 1

17 4011000918 螺栓GB5785-M20*1.5*125EpZn-8.8 Bolt Y 2

18 29010024431 垫圈124 Washer Y 2

19 4110001528 减震器CBB120 Absorber Y 4

20 4015000176 垫圈GB97.1-20EpZn-300HV Washer Y 2

21 4013000160 螺母GB889.2-M20*1.5EpZn-8 Lock nut Y 2

22 4190001833 扎丝RTGB-300ST Cable tie Y 3

23 29010071141 回油接头 Nipple Y 1

24 4030000495 胶管JB8406-B16*265 Hose Y 1

25 4011000378 螺栓GB5785-M24*2*160EpZn-8.8 Bolt Y 2

26 29050019331 垫圈 Washer Y 4

27 4110001527 减震器CBB114 Absorber Y 4

28 4013000157 螺母GB889.2-M24*2EpZn-8 Lock nut Y 2

29 4015000167 垫圈GB97.1-24EpZn-300HV Washer Y 2

30 4043002319 软管LGB334-13*2300E Hose Y 1

31 4017000010 喉箍JB8870-d20 Clamp Y 4
32 4043002659 软管LGB334-133000E Hose Y 1

33 4090000370 胶管HG2491-162700 Hose Y 1
34 29030008221 管夹 Clamp Y 1
35 4190000056 扎丝LG13-ZS3200 Cable tie Y 3

36 4011000461 螺栓GB16674-M816EpZn-8.8 Bolt Y 4
