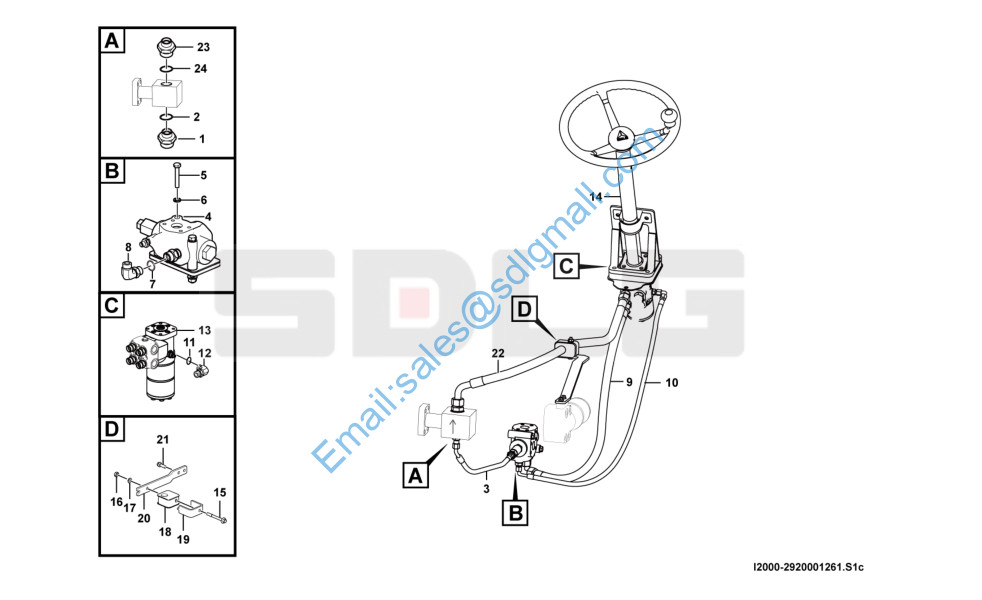

L955FC 转向器总成 Steering system I2000-2920001261

 4041000709 直接头LGB120-01616 Nipple Y 1

2 4041000780 O形圈LGB168-11324 O-ring Y 1

3 29200011431 优先阀回油胶管 Hose assembly Y 1

4 29200011391 优先阀VLE-150S部装总成 Priority valve N 1

5 4011001354 螺栓GB5782-M10*90flZnyc-8.8-480 Screw Y 2

6 4015000433 垫圈GB97.1-10flZnyc-300HV-480 Washer Y 2

7 4030000501 O形圈GB3452.1-15.0*1.80G O-ring Y 1

8 4041001006 组合接头LGB143-02616 Nipple Y 1

9 4041003348 软管LGB127-410085 Hose assembly Y 1

10 4041003349 软管LGB128-403100 Hose assembly Y 1

11 4030000530 O形圈GB3452.1-6.00*1.80G O-ring Y 1

12 4041001047 组合接头LGB143-01406 Nipple Y 1

13 29200011381 转向器Xcel80-800部装 Diverter N 1

14 29200013141 转向柱部装总成 Steering column N 1

15 4011001512 螺栓GB5782-M8*60flZnyc-8.8-480 Bolt Y 1

16 4013000373 螺母GB6170-M8flZnyc-8-480 Nut Y 1

17 4015000430 垫圈GB97.1-8flZnyc-300HV-480 Washer Y 2

18 29200011411 橡胶管夹 Clamp Y 1

19 29200011421 U型固定板 Plate Y 1

20 29200013511 胶管支架 Bracket Y 1

21 4011001296 螺栓GB16674.1-M8*20flZnyc-8.8-480 Screw Y 2

22 29200013521 胶管 Hose assembly Y 1

23 4041000796 直接头LGB120-02628 Nipple Y 1

24 4041000779 O形圈LGB168-12331 O-ring Y 1
