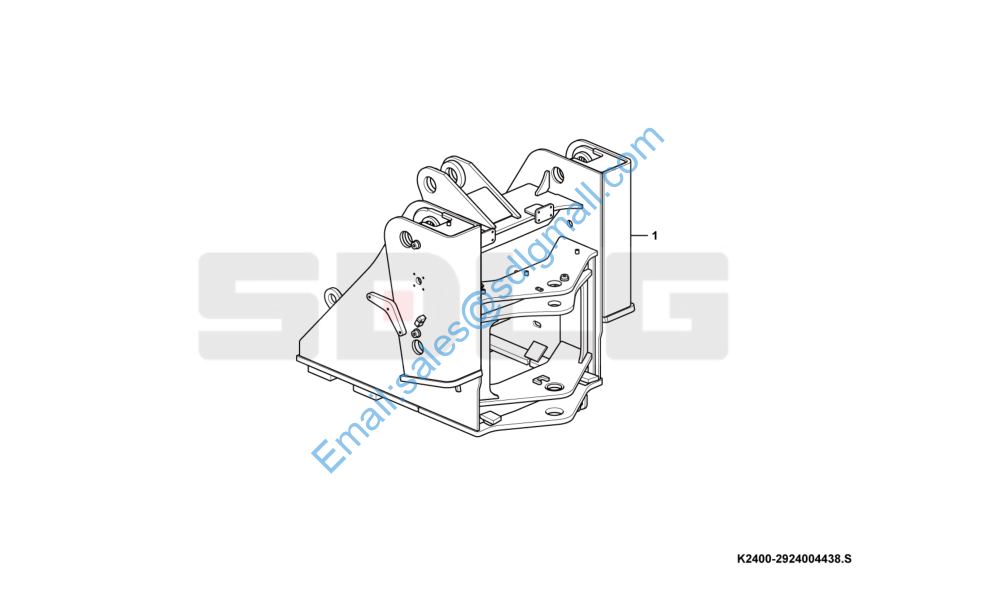

L955FC 前车架JF955 Front frame K2400-2924004438

1 29240044381 前车架JF955 Front frame N 1

前车架附件 Accessories K2500-2925001973

1 4043000040 垫片LGB303-95*160*1 Shim Y 4

2 4043001471 销轴LGB301-95*135NR*250-1401G Weld pin Y 1

3 4011001261 螺栓GB5783-M16*30flZnyc-8.8-480 Screw Y 7

4 4040000051 垫圈LGB001-16flZnyc-480 Washer Y 5

5 4043000038 垫片LGB303-95*150*2 Shim Y 4

6 4043000037 垫片LGB303-95*150*1 Shim Y 4

7 4043001470 销轴LGB301-95*150N*285-1401G Weld pin Y 2

8 29250001361 走线胶套 Rubber sleeve Y 2

9 29250016881 油管 Lubricating pipe Y 2

10 4043001060 销轴LGB301-85*150*290-1A11G Weld pin Y 2

11 29250018651 垫片18*55*10 Shim Y 2

12 29250024381 油管 Lubricating pipe Y 1

13 4021000043 关节轴承GB9163-GE70ES-2RS Spherical plain bearing Y 1

14 4011001250 螺栓GB5783-M12*30flZnyc-8.8-480 Screw Y 38

15 29250001031 法兰 Flange Y 1

16 29250001051 联接板 Flange Y 1

17 29250024361 上铰接销 Pin Y 1

18 29270009421 塑料塞 Plastic plug Y 1

19 29250017661 下铰接销 Pin Y 1

20 29250009441 套 Sleeve Y 1

21 4043000057 防尘圈LGB307-95 Sealing ring Y 2

22 4015000428 垫圈GB97.1-12flZnyc-300HV-480 Washer Y 38

23 4021000058 轴承GB297-33116 Roller bearing Y 2

24 29250000091 盘 Flange Y 1

25 29250000061 垫片 Shim Y 1

26 29250000071 垫片 Shim Y 1

27 29250000081 垫片 Shim Y 1

28 29250000051 间隔套 Sleeve Y 1

29 29250009461 盘 Flange Y 1

30 29250009451 套 Sleeve Y 1

31 29250009421 套 Sleeve Y 1

32 29250017701 垫片 Shim Y 1

33 29250017711 垫片 Shim Y 1

34 29250017721 垫片 Shim Y 1

35 29250017691 开槽螺母 Nut Y 1

36 4016000043 开口销GB91-8*80EpZn-Q235A Split pin Y 1

37 4011001270 螺栓GB5783-M10*35flZnyc-8.8-480 Screw Y 8

38 4015000426 垫圈GB96.1-10flZnyc-300HV-480 Washer Y 14

39 11220538 减震垫 Damper mat Y 16

40 11220539 钢管 Steel pipe Y 8

41 4043001362 护套LGB313-20*32 Rubber sleeve Y 2

42 4030000065 油杯JB7940.1-M10*1 Lubricating nipple Y 9

43 4011001248 螺栓GB5783-M10*25flZnyc-8.8-480 Screw Y 6

44 29250018181 右灯架 Lamp bracket Y 1

45 29250008461 走线胶套 Rubber sleeve Y 2

46 4011001240 螺栓GB16674-M12*25flZnyc-8.8-480 Screw Y 6

47 29250018341 转向销轴 Pin Y 2

48 29250010901 右前挡泥瓦 Front fender Y 1

49 4011001280 螺栓GB5783-M10*40flZnyc-8.8-480 Screw Y 5

50 4043002603 防松套LGB331-10*20*16flZnyc-45 Attaching sleeve Y 5

51 29140014801 前盖板 Cover plate Y 1

52 29250000301 垫片 Shim Y 15

53 29250000291 通油螺栓 Bolt Y 6

54 29250010881 左前挡泥瓦 Front fender Y 1

55 29250018171 左灯架 Lamp bracket Y 1

56 29250014121 接头 Nipple Y 3

57 29250000311 管夹 Clamp Y 5

58 4015000213 垫圈GB93-6EpZn-65Mn Washer Y 10

59 4014000510 螺钉GB818-M6*10flZnyc-4.8-480 Screw Y 10

60 29250021041 油管 Lubricating pipe Y 2

61 29250018781 油管 Lubricating pipe Y 1
