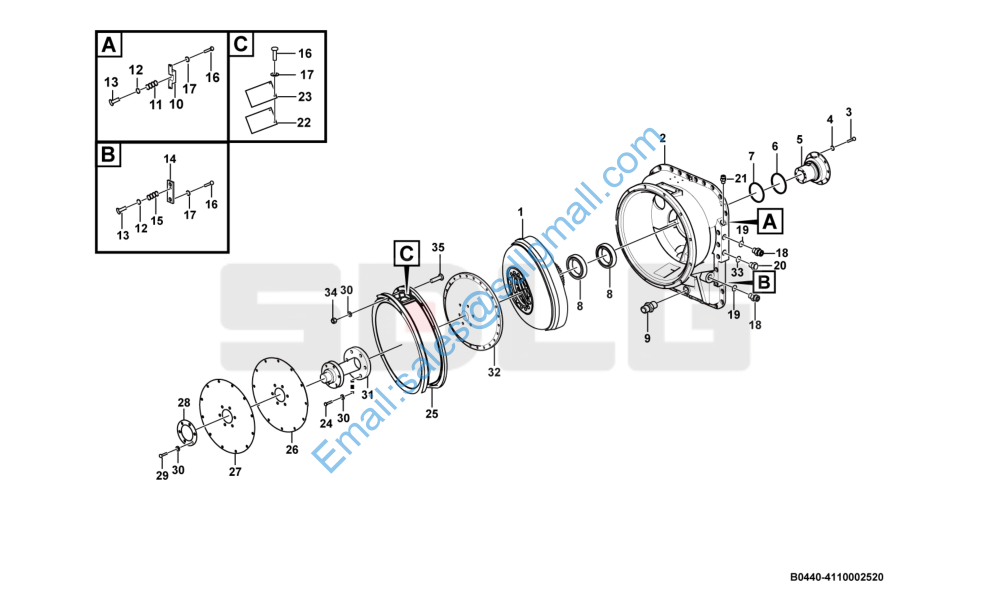

L936 变矩器(610101) Torque converter B0440-4110002520

1 4110000160083 液力变矩器YJHSW315-2A 1-0 Torque converter Y 1

2 4110000160085 壳体YB-45/0-04 Housing N 1

3 4011000081 螺栓GB5783-M10*20EpZn-8.8 Bolt Y 9

4 4015000025 垫圈GB93-10-65Mn Spring washer Y 9

5 4110000160102 导轮座0-01 Seat Y 1

6 4110002520101 金属密封环JB/T8547-YHX125 Sealing ring N 1

7 4015000242 P挡圈GB893.1-125-65Mn Retaining ring Y 1

8 4021000013 滚动轴承GB276-6016 Ball bearing Y 2

9 4110000160088 回油接口YB-45/0-01 Nipple N 1

10 4110000160089 阀盖YB-1/0-03 Cover N 1

11 4110000160090 弹簧ⅠYB-1/0-04 Spring N 1

12 4110000160091 调整垫片YB-1/0-05 Shim N 1

13 4110000160092 阀芯YB-1/0-06 Valve rod N 2

14 4110000160093 盖板YB-1/0-07 Plate N 1

15 4110000160094 弹簧ⅡYB-1/0-08 Spring N 1

16 4011001523 P-螺栓GB5781-M8*16EpZn-4.8 Screw Y 12

17 4015000036 垫圈GB93-8-65Mn Spring washer Y 12

18 4110000160095 管接头YB-1/0-015 Nipple N 2

19 4015000488 P-垫圈JB982-30 Washer Y 2

20 4110000160097 螺塞YB-45/0-03 Plug N 1

21 4110000160098 转换接头YB-45/0-02 Nipple N 1

22 4110000160099 衬垫YB-1/0-012 Gasket N 2

23 4110000160104 观察盖YB-1/0-014 Cover N 2

24 4011000606 P-螺栓GB5782-M12*40EpZn-10.9 Screw Y 6

25 4110000160105 过渡套0-02 Sleeve N 1

26 4110002520102 弹性板总成YB315-Z5.2 Plate assembly N 1

27 4110002520103 弹性板YB315-Z5-01 Plate N 1

28 4110002520104 护板YB-32/0-03 Protecting plate N 1

29 4011000197 螺栓GB5783-M12*25EpZn-8.8 Bolt Y 6

30 4015000026 垫圈GB93-12-65Mn Spring washer Y 24

31 4110000160109 过渡轴0-03 Shaft N 1
32 4110000160110 密封垫0-04 Gasket N 1
33 4110002520105 O型圈GB1235-333.1 O-ring N 1 34 4013000349 螺母GB41-M12EpZn-05 Nut Y 12 35 4011000261 螺栓GB5782-M1265EpZn-8.8 Bolt Y 12
