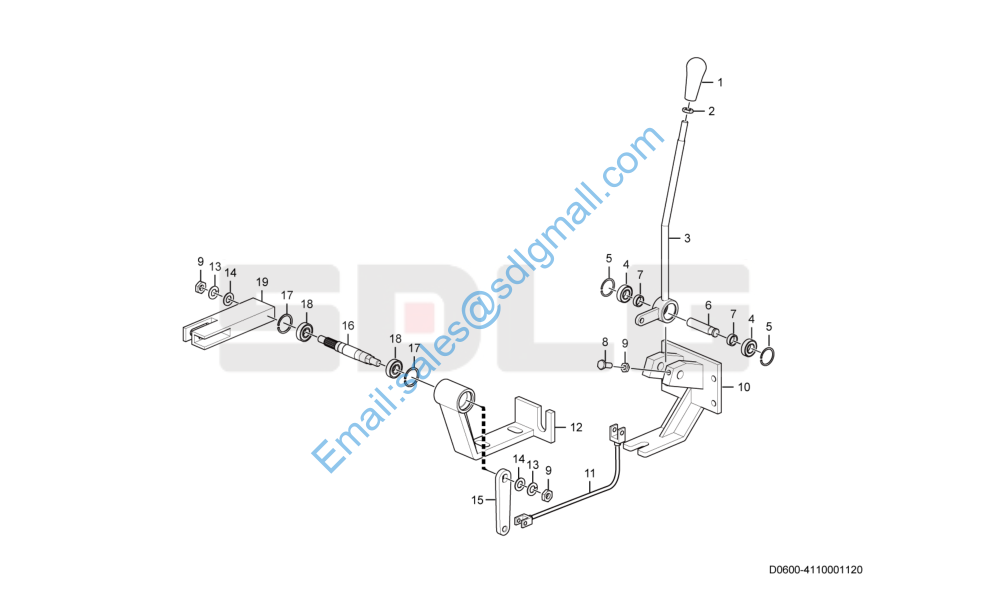

L933 LG933高低速操纵机构(130501 ) Shift mechanism D0600-4110001120

1 4110000503004 手球LGGDS9330001 Handle ball Y 1

2 4013000011 螺母GB6170-M12EpZn-8 Nut Y 1

3 4110000503005 操纵杆组件 Control lever Y 1

4 4021000112 P滚动轴承GB276-6003 Ball bearing Y 2

5 4110000503006 卡簧 E-circlip Y 2

6 4110000503007 轴LGGDS9330003 Shaft Y 1

7 4110001120003 轴套LGG930004 Bushing Y 2

8 4110000011127 螺栓M10X25-8.8 Screw N 1

9 2810000388013 螺母M10 Nut Y 3

10 4110000503001 高低速操纵机构（4110000503-1） Control mechanism Y 1

11 4110000503002 高低速操纵软轴（4110000503-2） Control mechanism Y 1

12 4110001120001 高低速操纵支架 Bracket Y 1

13 4110001525040 弹簧垫圈1022681 Spring washer N 2

14 29050015481 垫圈10 Washer Y 2

15 4110001120004 软轴支架连接板LGG930008 Bracket Y 1

16 4110001120002 软轴支架轴LGG9330009 Shaft Y 1

17 4110000747006 卡簧KH-001 Lock ring Y 2

18 4110001120005 轴承6902 ZC-004 Bearing Y 2

19 4110001120006 软轴支架连接叉LGG9300010 Link yoke Y 1
