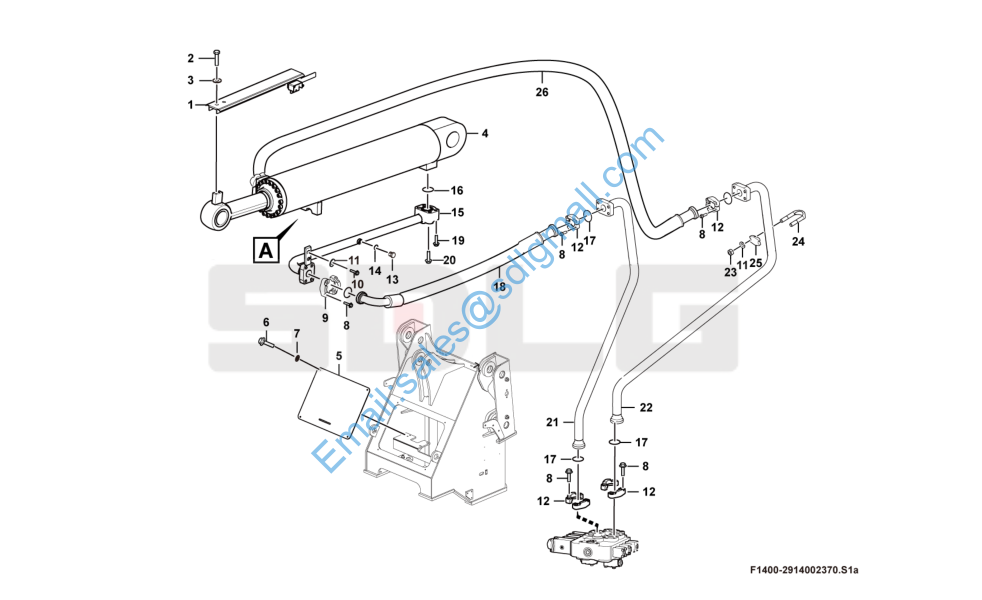

L933 转斗缸总成 Tilt cylinder system F1400-2914002370

1 29140023061 放平护板 Indicator plate Y 1

2 4011001238 螺栓GB5783-M10*20flZnyc-8.8-480 Screw Y 4

3 4015000433 垫圈GB97.1-10flZnyc-300HV-480 Washer Y 4

4 4120008483 转斗油缸HSGF-140*80*502-952A Tilt cylinder Y 1

5 29140015121 前盖板 Cover plate Y 1

6 4011001246 螺栓GB5783-M8*16flZnyc-8.8-480 Screw Y 4

7 4015000425 垫圈GB96.1-8flZnyc-300HV-480 Washer Y 4

8 4011001300 螺栓GB16674.1-M10*30flZnyc-8.8-480 Screw Y 24

9 4041000715 分体法兰LGB117-306401 Flange half Y 2

10 4011001249 螺栓GB5783-M10*30flZnyc-8.8-480 Screw Y 2

11 4015000426 垫圈GB96.1-10flZnyc-300HV-480 Washer Y 10

12 4041000043 分体法兰LGB117-310490 Flange half Y 4

13 4041000774 螺塞LGB135-01422 Plug Y 1

14 4041000767 O形圈LGB168-11124 O-ring Y 1

15 29140019241 转斗缸大腔钢管 Pipe Y 1

16 4030000279 O形圈GB3452.1-25.0*3.55G O-ring Y 3

17 4030000026 O形圈GB3452.1-32.5*3.55G O-ring Y 4

18 29140024641 转斗缸大腔胶管 Hose assembly Y 1

19 4011001381 螺栓GB16674.1-M10*35flZnyc-8.8-480 Screw Y 2

20 4011001288 螺栓GB16674.1-M10*50flZnyc-8.8-480 Screw Y 2

21 29140017471 转斗联大腔钢管 Pipe Y 1

22 29140017451 转斗联小腔钢管 Pipe Y 1

23 4013000370 螺母GB6170-M10flZnyc-8-480 Nut Y 8

24 29140012931 U形螺栓 U-bolt Y 4

25 4041001018 底板LGB160-3040 Bracket Y 4

26 29140024651 转斗缸小腔胶管 Hose assembly Y 1
