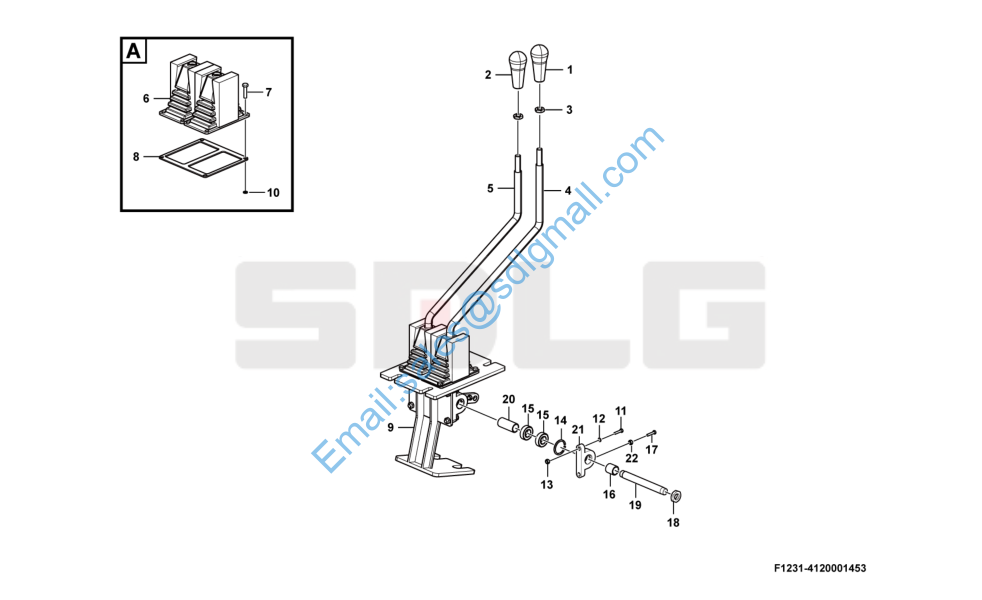

L933 液压操纵机构(410304) Hydraulic control assembly F1231-4120001453

1 4120001453004 135M仿桃木020300400032 Handle ball Y 1

2 4120001453005 135M仿桃木020300400031 Handle ball N 1

3 4120002148003 M12螺母RM-007 Nut Y 2

4 4120001453006 135M1手柄杆（933两联）020300500133 Control lever Y 1

5 4120001453007 135M1手柄杆（933三联/两联 Control　lever Y 1

6 4120001019003 135折叠件 Bracket N 2

7 4120005364001 螺栓M6-12 LGC9530014 Screw Y 4

8 4120001453008 135M盖板020300100496 Rubber mat N 1

9 4120001453009 135M底架020300100491 Bracket Y 1

10 4120001453010 135M插片020300100685 Shim N 4

11 4110000172029 M8×1.25-30螺栓LGH9530009 Screw Y 4

12 4110002042020 弹垫Φ8 TD-002 Washer Y 4

13 4120002148013 M8螺母RM-001 Nut Y 4

14 4110002141143 孔用弹性挡圈35 Retaining ring N 4

15 4120002148009 6003轴承ZC-002 Bearing Y 4

16 4120001453011 135M隔套020300100494 Bushing N 1

17 4110001645049 螺栓M6*20GB/T 5783-2000 Screw Y 2

18 4120002148010 M16薄螺母LGC9530011 Nut Y 1

19 4120001453012 135M轴020300100498 Shaft N 1

20 4120001453013 135M隔套020300100495 Bushing N 1

21 4120001453014 130支座020300100525 Housing Y 2

22 4120002148016 M6螺母RM-002 Nut Y 2
