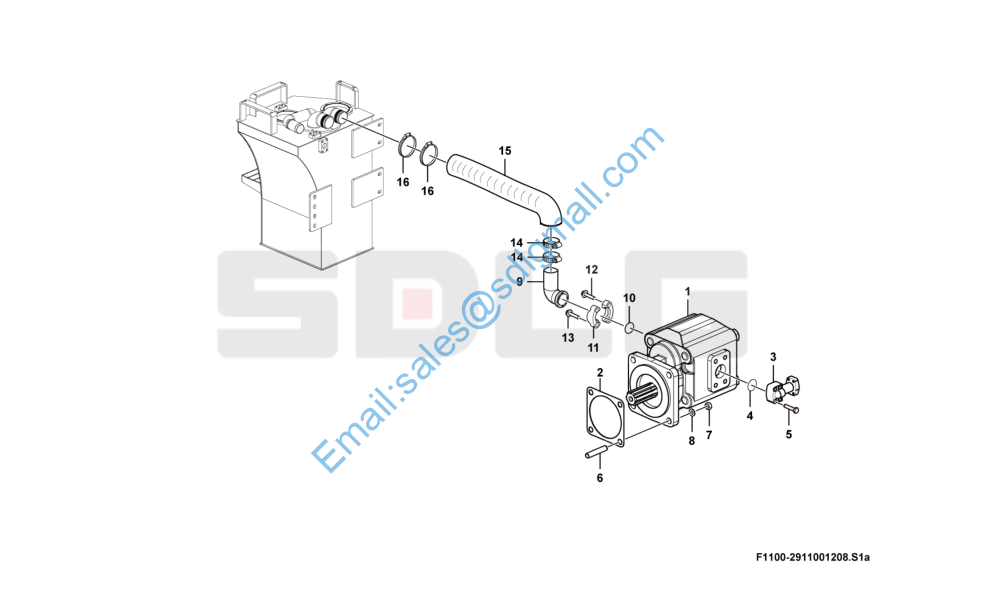

L953F 工作泵总成 Working hydraulic pump assembly F1100-2911001208

1 4120002513 齿轮泵JHP3160S Gear pump Y 1

2 29110000043 泵用密封垫 Gasket Y 1

3 29110001021 出油钢管 Pipe Y 1

4 4030000029 O形圈GB3452.1-37.5*3.55G O-ring Y 1

5 4011001298 螺栓GB16674.1-M10*55flZnyc-8.8-480 Screw Y 4

6 4012000100 螺柱GB898-M12*35flZnyc-10.9-480 Stud Y 4

7 4013000397 螺母GB6170-M12flZnyc-10-480 Nut Y 4

8 4015000428 垫圈GB97.1-12flZnyc-300HV-480 Washer Y 4

9 29110012091 工作泵吸油钢管 Pipe Y 1

10 4030000133 O形圈GB3452.1-56.0*3.55G O-ring Y 1

11 4041000009 分体法兰LGB117-320760 Flange half Y 1

12 4011001510 螺栓GB16674.1-M12*35flZnyc-8.8-480 Screw Y 2

13 4011001244 螺栓GB16674-M12*40flZnyc-8.8-480 Screw Y 2

14 4017000018 喉箍JB8870-d70 Clamp Y 2

15 29110012101 工作泵吸油胶管 Hose Y 1

16 4017000006 喉箍JB8870-d100 Clamp Y 2
