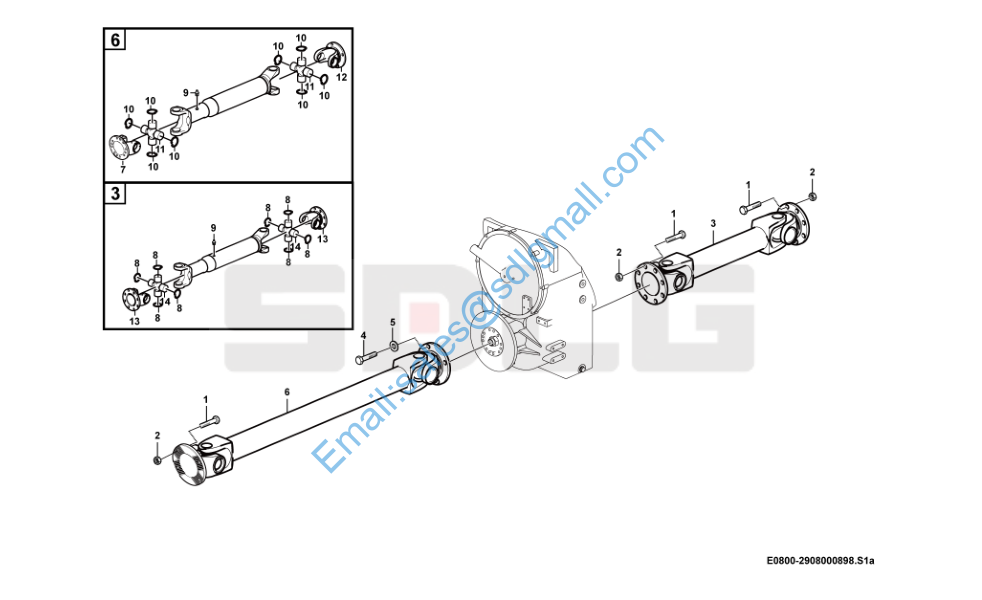

L953F 传动轴总成 Propeller shaft assembly E0800-2908000898

1 4011000568 螺栓GB5786-M12*1.25*40EpZn-10.9 Bolt Y 24

2 4013000072 螺母GB889.2-M12*1.25EpZn-10 Lock nut Y 24

3 4110002912 传动轴P41*409.5 Propeller shaft Y 1

4 29080008131 螺栓 Screw Y 12

5 4015000340 防松垫圈NL12 Washer Y 12

6 4110003774 传动轴P45*1255.5 Propeller shaft Y 1

7 4110002086001 突缘叉4501-01-001 Propeller shaft flange Y 1

8 4110001951002 卡簧504100C-01 Retaining ring Y 8

9 4110002086003 油杯M6 JB/T7940.1-1995 Grease cup N 2

10 2908000102002 卡簧W50L/K(R)-5820 Clip Y 8

11 4110001531001 十字轴万向节总成W50-45126-A Spider Y 2

12 2908000102001 突缘叉ZL50.5.8-03 Link yoke Y 1

13 2908000102006 突缘叉XGZL50.5.00-01-D Link yoke Y 2

14 4110002912001 万向节总成EQ140-41118-T Spider N 2
