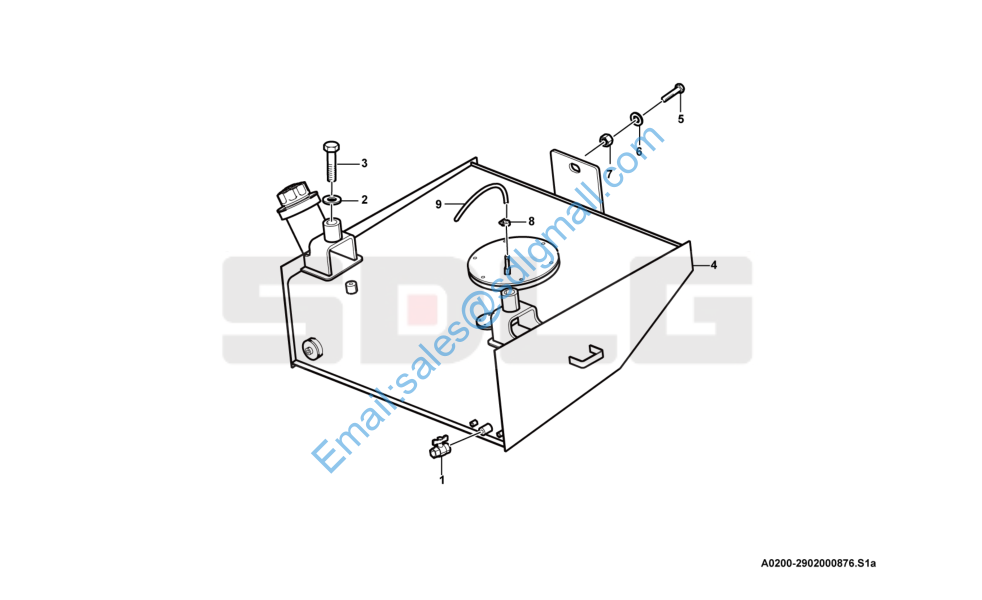

L920 燃油箱系统 Fuel tank system A0200-2902000876

1 4120000099 球阀MBS216-1/2″ Valve Y 1

2 4015000187 垫圈GB96.1-24EpZn-300HV Washer Y 2

3 4011000446 螺栓GB5785-M24*2*120EpZn-8.8 Screw Y 2

4 29020014171 燃油箱总成 Fuel tank Y 1

5 4011000114 螺栓GB5785-M20*2*60EpZn-8.8 Bolt Y 1

6 4015000176 垫圈GB97.1-20EpZn-300HV Washer Y 1

7 4013000040 螺母GB6171-M20*2EpZn-8 Nut Y 1

8 4017000010 喉箍JB8870-d20 Clamp Y 1

9 4120000046 胶管JB8406-A10*560 Hose assembly Y 1

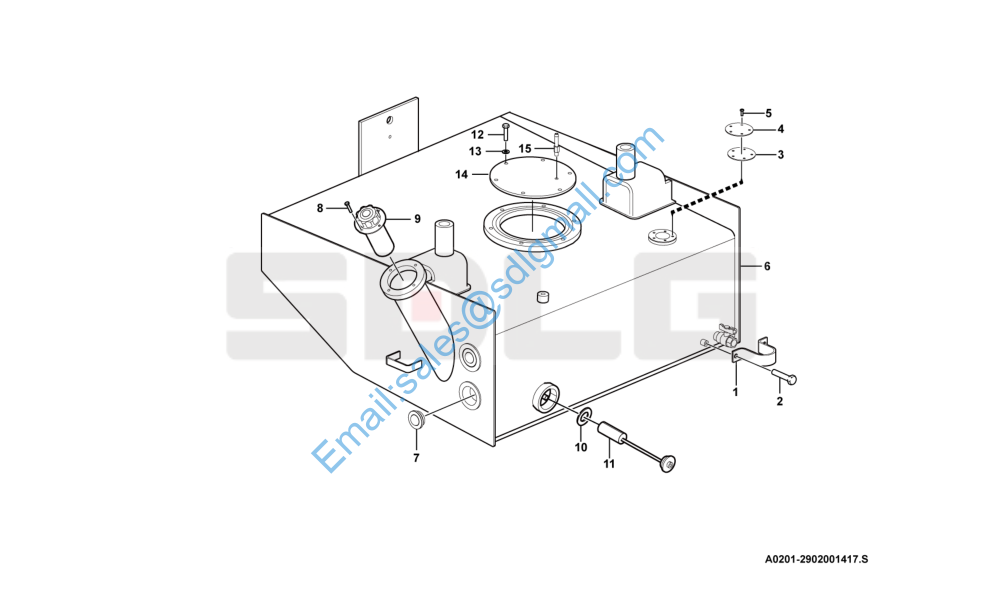

燃油箱总成 Fuel tank assembly A0201-2902001417

1 29020006591 护板 Protecting plate Y 1

2 4011000455 螺栓GB16674-M8*25EpZn-8.8 Bolt Y 2

3 29020006851 垫片 Spacer Y 1

4 29020006841 法兰盖 Cover plate Y 1

5 4014000047 螺钉GB818-M5*8EpZn-4.8 Screw Y 5

6 29020008771 燃油箱体 Fuel tank Y 1

7 4110000807 圆形油标YB-M42*1.5 Level gauge Y 3

8 4011000461 螺栓GB16674-M8*16EpZn-8.8 Bolt Y 4

9 4110000612 加油滤清器QL8 Fuel filter Y 1

10 29020007931 垫圈 Washer Y 1

11 29020006581 滤油器总成 Fuel filter Y 1

12 4011000447 螺栓GB16674-M10*20EpZn-8.8 Bolt Y 6

13 4030000022 O形圈GB3452.1-200*7.00G O-ring Y 1

14 29020006571 盖板 Cover plate Y 1

15 29020006561 透气钢管 Tube Y 1
