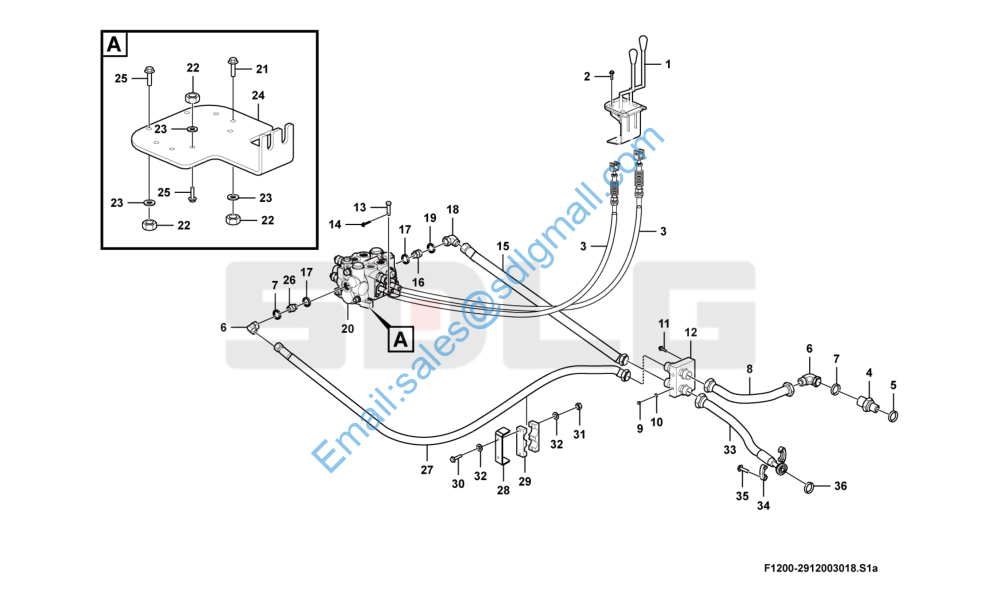

L920 液压操纵总成 Hydraulic control system F1200-2912003018

1 4120002046 操纵机构LG12-918CZJG02 Control mechanism Y 1

2 4011000474 螺栓GB16674-M10*25EpZn-8.8 Bolt Y 4

3 29120016173 操纵软轴 Flexible shaft Y 2

4 4041000796 直接头LGB120-02628 Nipple Y 1

5 4041000779 O形圈LGB168-12331 O-ring Y 1

6 29120006551 组合直角接头 Nipple Y 2

7 4030000501 O形圈GB3452.1-15.0*1.80G O-ring Y 2

8 4041000510 软管LGB129-012045 Hose assembly Y 1

9 4041000774 螺塞LGB135-01422 Plug Y 2

10 4041000767 O形圈LGB168-11124 O-ring Y 2

11 4011001509 螺栓GB16674.1-M12*45flZnyc-8.8-480 Bolt Y 2

12 29120030191 过渡块 Block Y 1

13 4016000143 销轴GB882-B8*26EpZn-35 Clevis pin Y 2

14 4016000101 开口销GB91-2.5*20EpZn-Q235A Split pin Y 2

15 4041000675 软管LGB165-014130 Hose assembly Y 1

16 4041000676 直接头LGB120-03630 Nipple Y 1

17 4041000685 O形圈LGB168-12631 O-ring Y 2

18 29120006541 组合直角接头 Nipple Y 1

19 4030000504 O形圈GB3452.1-25.8*1.80G O-ring Y 1

20 4120000365 多路阀ZL20DL1-02 Control valve Y 1

21 4011000479 螺栓GB16674-M12*30EpZn-8.8 Bolt Y 4

22 4013000011 螺母GB6170-M12EpZn-8 Nut Y 8

23 4015000168 垫圈GB97.1-12EpZn-300HV Washer Y 8

24 29120006521 多路阀固定板 Anchor plate Y 1

25 4011000467 螺栓GB16674-M12*45EpZn-8.8 Screw Y 4

26 4041000582 直接头LGB120-02630 Nipple Y 1

27 4041000511 软管LGB128-012112 Hose assembly Y 1

28 29120032051 压板 Plate Y 1

29 29120032041 橡胶管夹 Clamp Y 2

30 4011001467 螺栓GB5782-M10*80flZnyc-8.8-480 Bolt Y 2

31 4013000370 螺母GB6170-M10flZnyc-8-480 Nut Y 2

32 4015000433 垫圈GB97.1-10flZnyc-300HV-480 Washer Y 4

33 29120006591 回油胶管 Hose assembly Y 1

34 4041000137 分体法兰LGB117-306400 Flange half Y 1

35 4011000475 螺栓GB16674-M10*30EpZn-8.8 Bolt Y 4

36 4030000279 O形圈GB3452.1-25.0*3.55G O-ring Y 1
