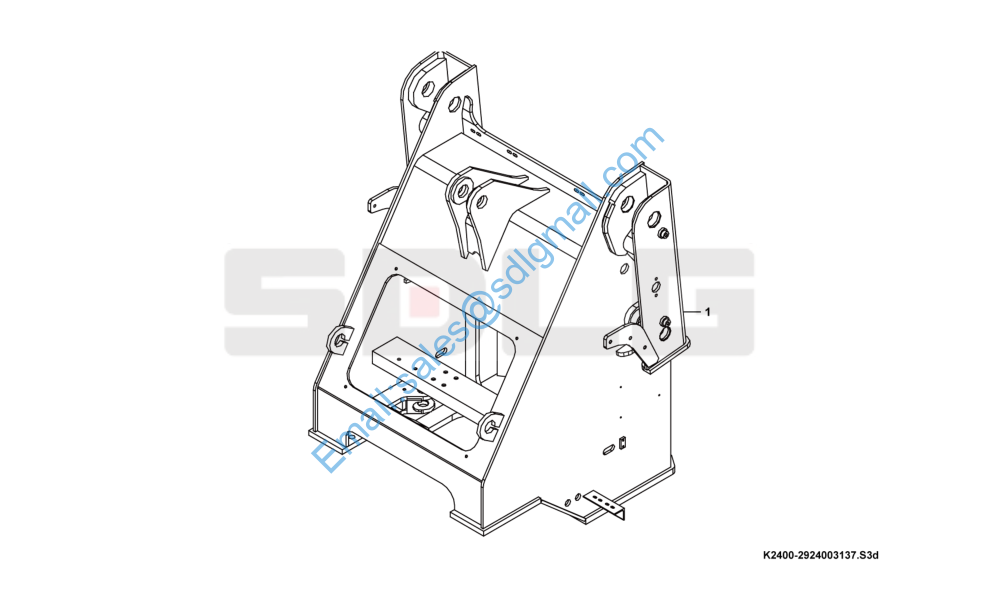

L920 前车架 Front frame K2400-2924003137

1 29240031373 前车架 Front frame Y 1

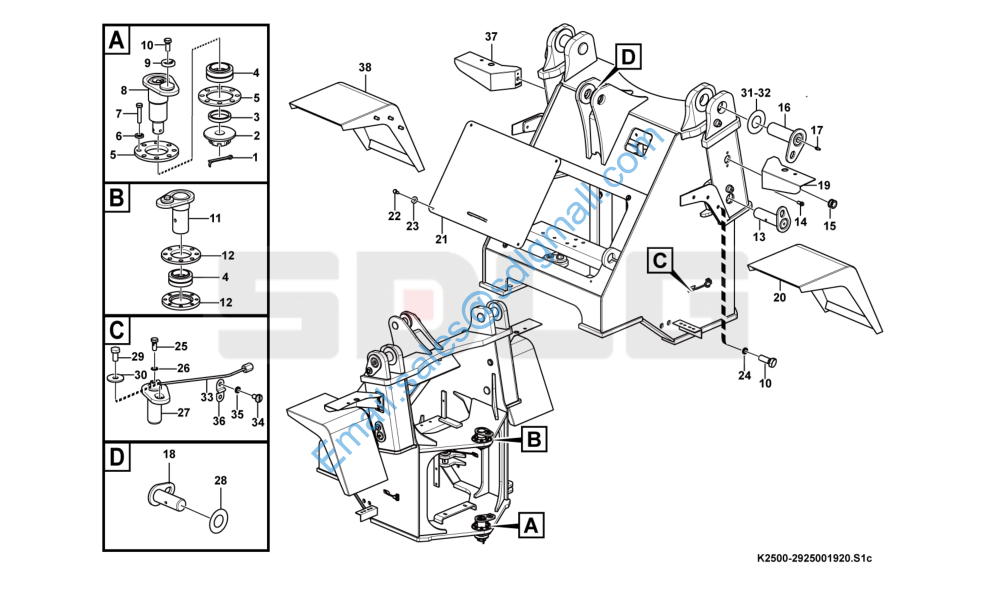

前车架附件 Rear frame system K2500-2925001920

1 4015000186 垫圈GB96.1-12EpZn-300HV Washer Y 6

2 4016000113 开口销GB91-6.3*63EpZn-Q235A Split pin Y 1

3 29250001061 开槽螺母 Nut Y 1

4 29250006521 套 Sleeve Y 1

5 4021000050 关节轴承GB9163-GE50ES-2RS Spherical plain bearing Y 2

6 29250006531 端盖 End cover Y 2

7 4015000025 垫圈GB93-10-65Mn Spring washer Y 16

8 4011000048 螺栓GB5782-M10*50EpZn-8.8 Bolt Y 16

9 29250006541 下铰接销 Pin Y 1

10 4011000197 螺栓GB5783-M12*25EpZn-8.8 Bolt Y 13

11 4040000001 垫圈LGB001-12 Washer Y 7

12 29250006551 上铰接销 Pin Y 1

13 29250006561 盘 Flange Y 2

14 4043000321 销轴LGB301-50*104*190G-40Cr Weld pin Y 2

15 29250001351 走线胶套 Rubber sleeve Y 4

16 4011000560 螺栓GB16674-M12*25EpZn-8.8 Bolt Y 4

17 4043000322 销轴LGB301-60*98*190G-40Cr Weld pin Y 2

18 4030000065 油杯JB7940.1-M10*1 Lubricating nipple Y 9

19 4043000148 销轴LGB301-50*80*145G-40Cr Weld pin Y 1

20 29250006571 前盖板 Cover plate Y 1

21 4015000256 垫圈GB96.1-8EpZn-300HV Washer Y 4

22 4011000102 螺栓GB5783-M8*16EpZn-8.8 Bolt Y 4

23 29250000291 通油螺栓 Bolt Y 2

24 29250000301 垫片 Shim Y 4

25 29250007971 前转向销轴 Pin Y 2

26 4043000067 垫片LGB303-50*100*1 Shim Y 2

27 4011000081 螺栓GB5783-M10*20EpZn-8.8 Bolt Y 2

28 4040000008 垫圈LGB001-10 Washer Y 2

29 4043000151 垫片LGB303-60*120*1 Shim Y 4

30 4043000141 垫片LGB303-60*120*2 Shim Y 4

31 29250006581 转向销油管 Lubricating pipe Y 2

32 29250000311 管夹 Clamp Y 2

33 4014000024 螺钉GB818-M6*10EpZn-4.8 Screw Y 4

34 4015000035 垫圈GB93-6-65Mn Spring washer Y 4

35 29250006591 右灯架 Lamp bracket Y 1

36 29250006601 右前挡泥瓦 Front fender Y 1

37 29250006611 左灯架 Lamp bracket Y 1

38 29250006621 左前挡泥瓦 Front fender Y 1
