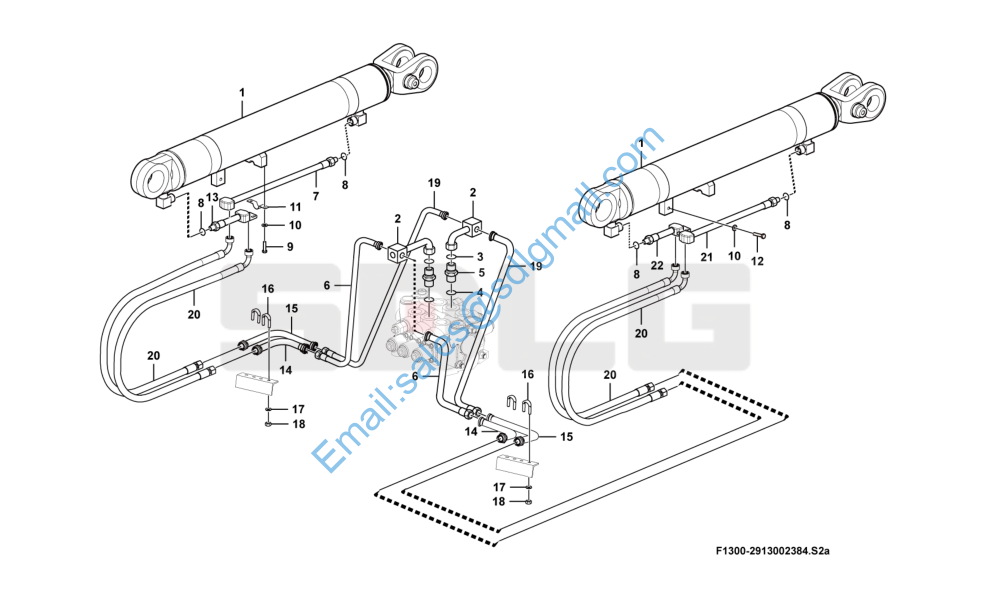

L920 举升缸系统 Lifting cylinder system F1300-2913002384

1 4120001153 动臂油缸HSGL-90*50*640-965 Lifting cylinder Y 2

2 29130023941 动臂联三通钢管 Pipe Y 2

3 4030000501 O形圈GB3452.1-15.0*1.80G O-ring Y 2

4 4041000685 O形圈LGB168-12631 O-ring Y 2

5 4041000582 直接头LGB120-02630 Nipple Y 2

6 4041000702 软管LGB128-006075 Hose assembly Y 2

7 29130006521 左动臂缸小腔钢管 Pipe Y 1

8 4030000242 O形圈GB3452.1-12.5*1.80G O-ring Y 4

9 4011001246 螺栓GB5783-M8*16flZnyc-8.8-480 Screw Y 4

10 4015000430 垫圈GB97.1-8flZnyc-300HV-480 Washer Y 6

11 29130009681 管夹 Clamp Y 2

12 4011001397 螺栓GB5783-M8*25flZnyc-8.8-480 Screw Y 2

13 29130006531 左动臂缸大腔钢管 Pipe Y 1

14 29130006571 动臂联大腔二通钢管 Pipe Y 2

15 29130006581 动臂联小腔二通钢管 Pipe Y 2

16 4011000555 U形螺栓JB/ZQ4321-18Zn-Q235A.F U-bolt Y 4

17 4015000424 垫圈GB97.1-6flZnyc-300HV-480 Washer Y 8

18 4013000372 螺母GB6170-M6flZnyc-8-480 Nut Y 8

19 4041001375 软管LGB128－406070 Hose assembly Y 2

20 29130006591 动臂缸胶管 Hose assembly Y 4

21 29130006541 右动臂腔小腔钢管 Pipe Y 1

22 29130006551 右动臂缸大腔钢管 Pipe Y 1
