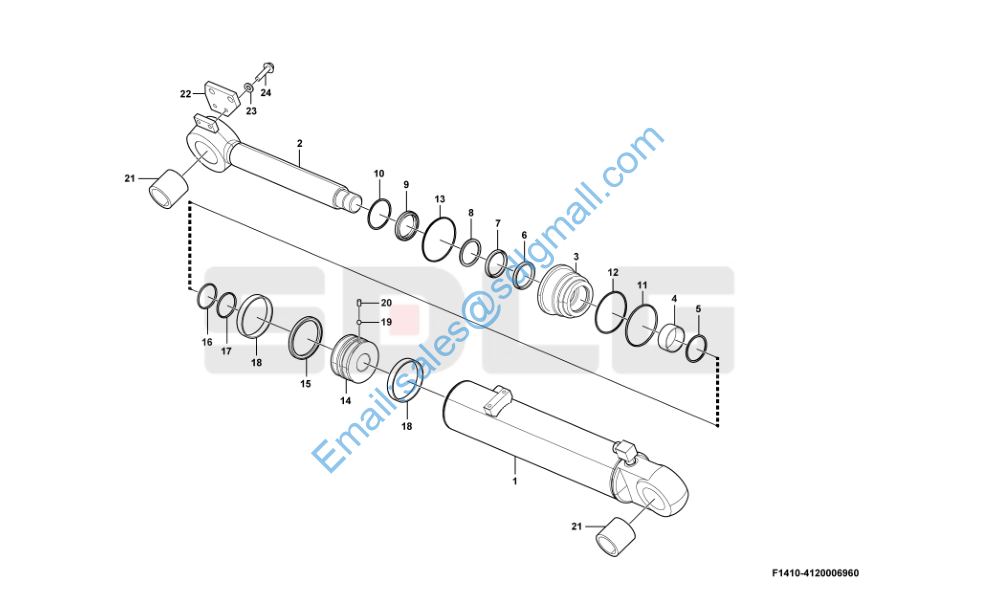

L918 转斗油缸(3713CH) Tilt cylinder F1410-4120006960

1 4120006960002 缸筒总成24A139400 Cylinder tube Y 1

2 4120006960003 活塞杆总成24A114350 Piston rod Y 1

3 4120006539003 缸盖24C105130 Cover Y 1

4 4120006442004 衬套24S255251 55*60*25 Bushing Y 1

5 4120006539004 钢丝挡圈-孔用24C090120 Retaining ring Y 1

6 4120006960004 密封件-缓冲24H005504 Sealing N 1

7 4120006960001 密封件包24A103210S Sealing kit Y 1

8 4120006960005 挡圈-U型圈24E005515 Retaining ring Y 1

9 4120006960001 密封件包24A103210S Sealing kit Y 1

10 4120006539006 钢丝挡圈-孔用24C090160 Retaining ring Y 1

11 4120006960001 密封件包24A103210S Sealing kit Y 1

12 4120006960001 密封件包24A103210S Sealing kit Y 1

13 4120006960001 密封件包24A103210S Sealing kit Y 1

14 4120006539007 活塞24C106120 Piston Y 1

15 4120006960001 密封件包24A103210S Sealing kit Y 1

16 4120006960001 密封件包24A103210S Sealing kit Y 1

17 4120006960001 密封件包24A103210S Sealing kit Y 1

18 4120006960001 密封件包24A103210S Sealing kit Y 2

19 4090000168 钢球GB308-5-GCr6 Ball Y 1

20 4120005872008 螺钉-内六角凹端紧定24T908161 Screw Y 1

21 4120006960006 轴套24C116340 Bushing Y 2

22 4120006960007 固定座24A154270 Anchor plate Y 1

23 4120006442009 垫圈-标准型弹簧24T401001 10 Washer Y 2

24 4120006442010 螺栓-六角头全螺纹24TB10253 M10*25L Screw Y 2
